537
HJ
1
TIANJIN
1000
T/T
available
API
well drilling
new
| Quantity: | |
|---|---|

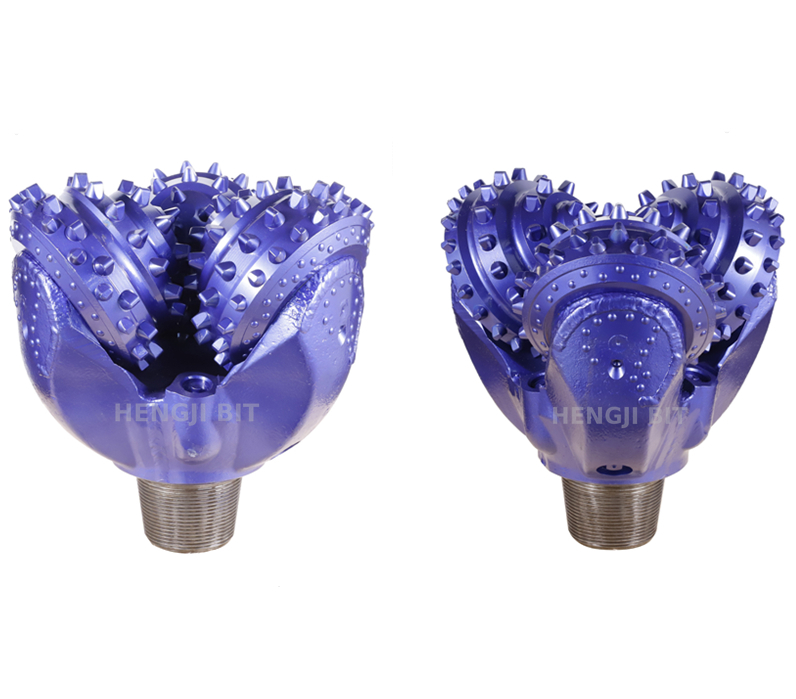

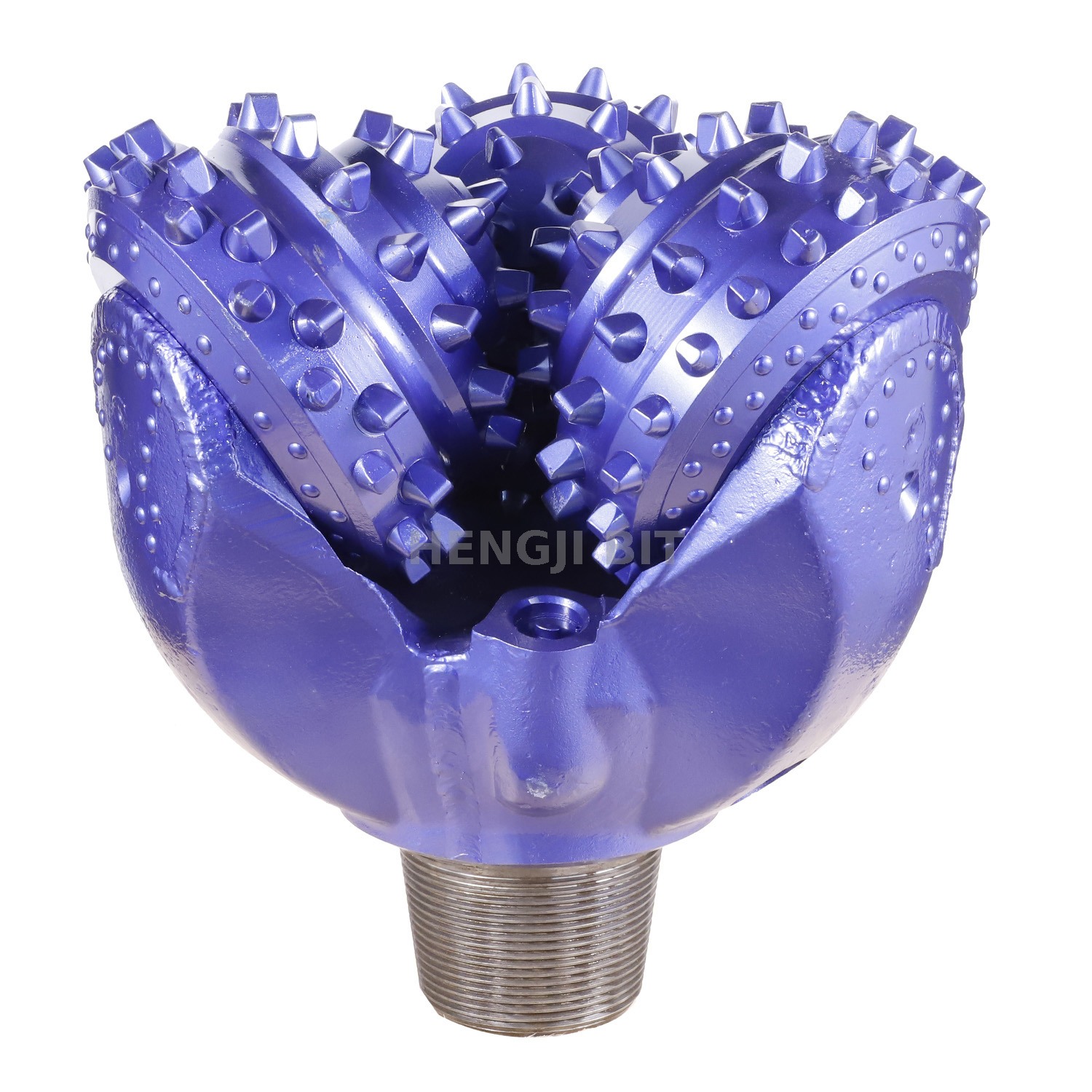

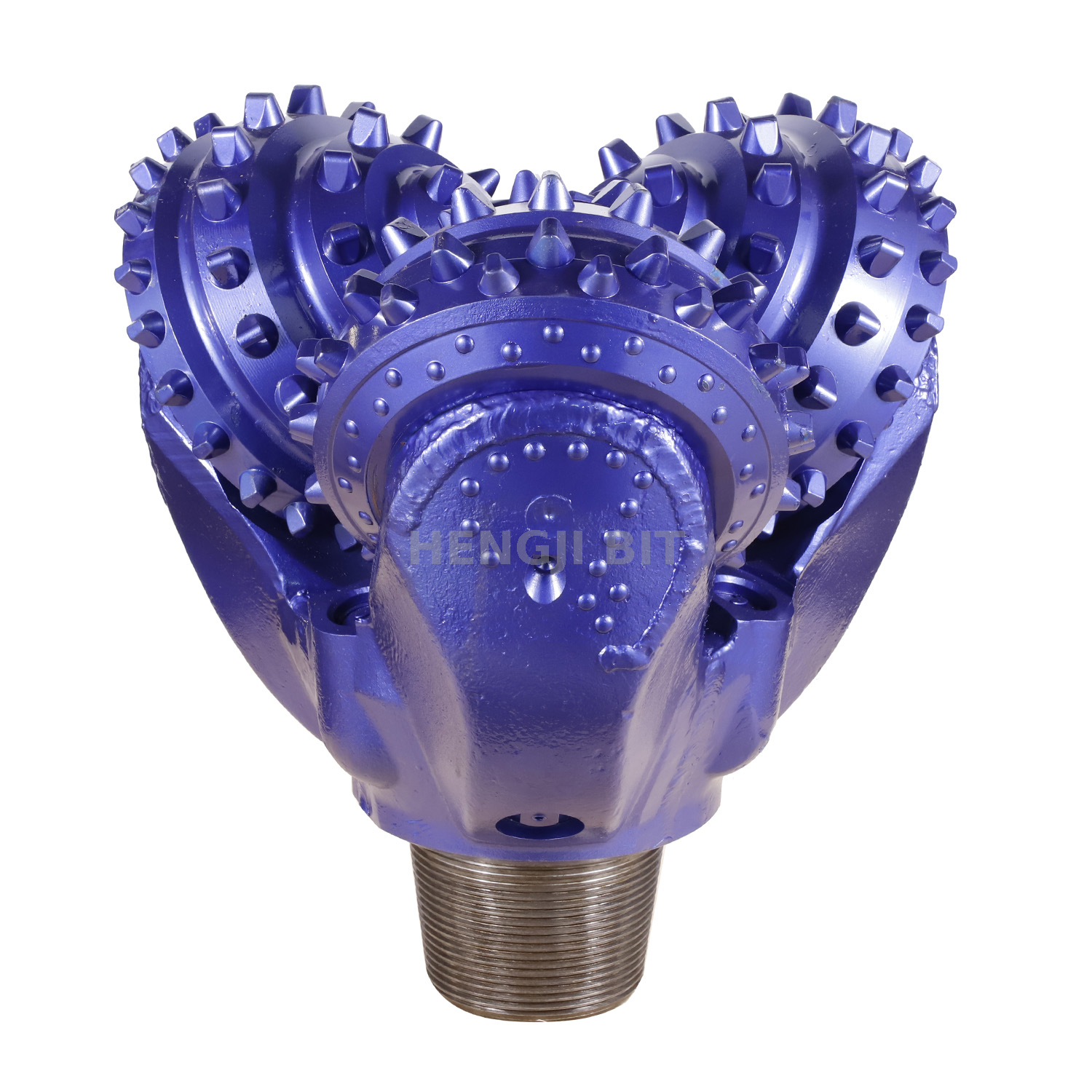

TRICONE BIT 22'' IADC 537
Design features:
Side circulation+cneter jet
Shirttail and leg leading edge hardfacing
Leg production with TCI inserts
OPERATING PARAMETERS:
WOB(KN/mm):0.45~1.0
RPM(r/min):120~50
Application Formation:soft to medium formation with low compressive strength ,such as medium soft shale,medium soft limestone,medium soft sandstone,etc.
MAIN STRUCTURE FEATURES
1. Journal bearing. Hardfaced head bearing surface.Inne hole of ocne is silve-plated.The load capacity and seizure resistance of the bearing is greatly improved.
2. O ring seal is mode of more wear resistant and high saturated buna-N with the increased seal section and precisely designed scaling flange in the cone sealing ares has increased the reliability of the seal.
3. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and thi provides the bearing system with good assurance of lubrication.
4. High weat resistance and excellent cutting ability pf the insert bit are given full play bu using carbide compacts of high strength and high toughness in comnination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel tooth tricone, the tooth surface is hard taced with new type of wear resistant material and thus has extended working life of the cutting structure while still maintaining high ROP.
Product Information:
1. wear resistance
2. high efficiency
3. long service life
4. direct selling with competitive price
5. MOQ: 1pc for testing the quality
6.customized order is available
Popular models | |
size | IADC CODE |
4 1/2’’(114.3mm) | 417 437 517 537 637 |
4 3/4’’(120.7mm) | 417 437 517 537 637 |
5 7/8’’(149mm) | 417 437 517 537 637 |
6’’(152mm) | 417 437 517 537 637 737 |
6 1/2’’(165mm) | 417 437 517 537 617 627 637 737 |
7 1/2’’(190mm) | 417 437 517 537 617 627 637 737 |
7 7/8’’(200mm) | 417 437 517 537 617 627 637 737 837 |
8 1/2’’(215.9mm) | 417 437 517 537 617 627 637 737 837 |
8 3/4’’(222.3mm) | 417 437 517 537 617 627 637 737 837 |
9 5/8’’(244.5mm) | 417 437 517 537 617 627 637 737 837 |
9 7/8’’(250.8mm) | 417 437 517 537 617 627 637 737 837 |
11 5/8’’(295.3mm) | 417 437 517 537 617 627 637 737 837 |
12 1/4’’(311.1mm) | 417 437 517 537 617 627 637 737 837 |
14 3/4’’(374.7mm) | 417 437 517 537 617 627 637 737 837 |
15 1/2’’(393.7mm) | 417 437 517 537 617 627 637 737 837 |
17 1/2’’(444.5mm) | 417 437 517 537 617 637 |
20’’(508mm) | |
22’’(558.8mm) | 437 517 537 637 |
24’’(509.6mm) | 437 517 537 |
HENGJI BIT:
There are full types of drill bits for your choosing in Hengji . Include TCI tricone bit,steel tooth tricone bit,single roller cone bit,pdc bit, hole opener,drag bit, etc.
Our bits are exported to global 58 countries. With good quality drill bits, we are the approved drill bits manufacturer and supplier for famous oil gas companies.As a good reputation OEM supplier, we are also a famous OEM manufacturer for famous companies.
ISO9001 & SGS Certified drill manufacturer, we are proud to bring you top-quality drill bits at good prices. Door to Door delivery service is available too. Send us a mail to get the best price now.
