| Quantity: | |
|---|---|

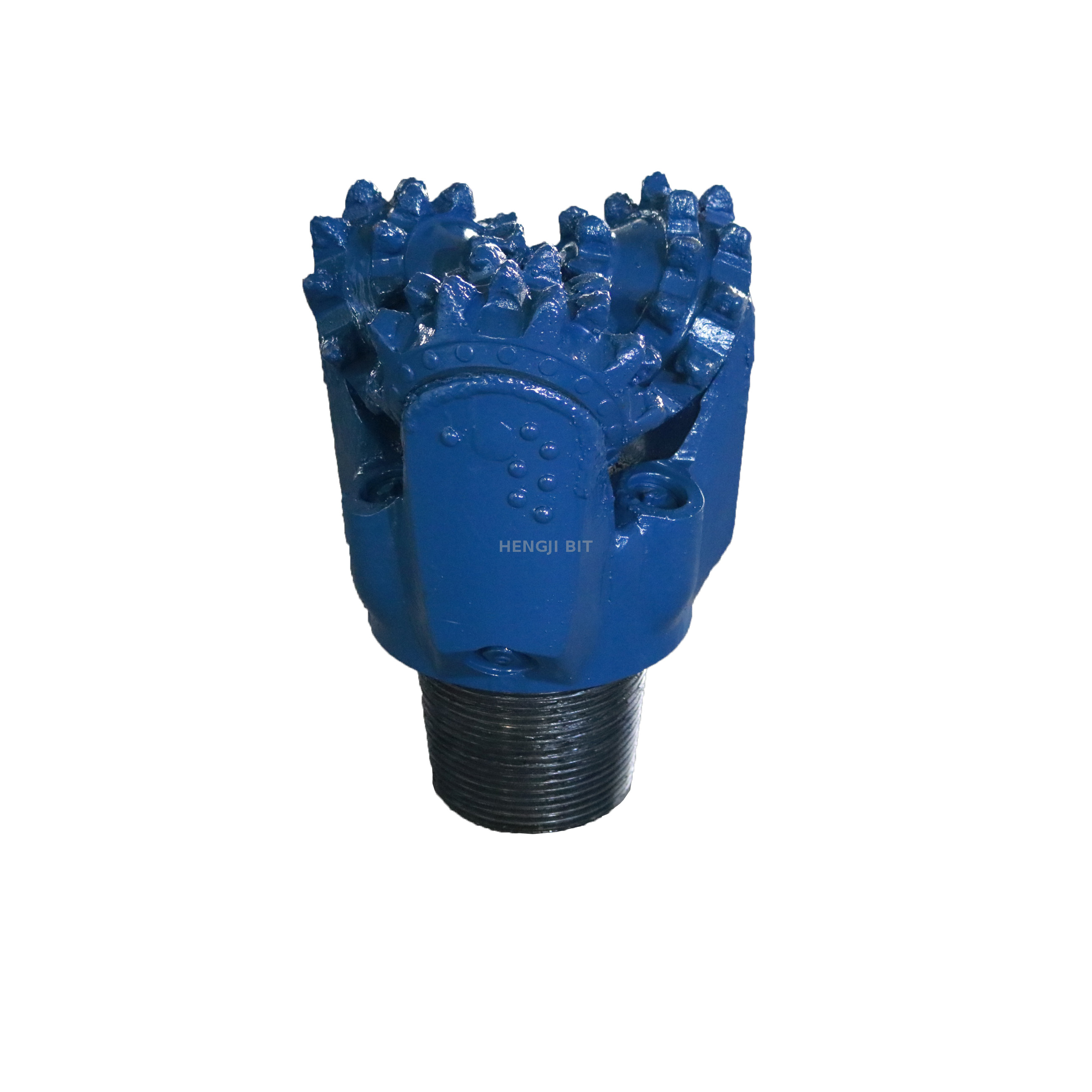

HENGJI BIT SPECIFICATION | |
Bit Size | 10 5/8''(269.9mm) |
IADC Code | 127 |
Series | HR |
Tooth type | TCI/tungsten carbide insert |
Connection | 6 5/8 API REG PIN |
Bearing | rubber sealed bearing |
Nozzle | three jet nozzles |
Rotary Speed(rpm) | 150~70 |
Weight on Bit(KN/MM) | 0.35~0.9 |
Application | water well,oil well,HDD,exploration,etc |
Formation | Soft formations with low compressive strength and high drillability,such as mudstone,gypsum,salt,soft shale ,soft limestone,etc. |
Description of Tricone bit:
Cutting Structure:
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
Gauge Structure :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing Structure :
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
Seal and Lubrication :
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure
compensator system and advanced grease can greatly increase the lubricating reliability.
IADC CODE:
Bit Type |
IADC | Recommend parameter |
Apply formation | |
Pulldown (kN/mm) | Rotation speed (r/min) | |||
Rubber sealed | 117 | 0.35~0.90 150~80 | Extremely soft formations with low compressive strength and high drillability, such as soft shale, clay, salt rock, etc. | |
127 | 0.35~1.00 150~70 | Low compressive strength, high drillability soft formation, such as shale clay, salt rock, soft limestone,etc | ||
417 | 0.35~0.90 140~70 | Extremely soft formations with low compressive strength and high drillablity, such as shale, clay, sandstone, conglomerate, etc | ||
437 | 0.35~0.95 140~60 | Extremely soft formations with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc | ||
447 | 0.35~1.00 140~60 | Soft formations with low compressive strength and high drillability, such as shale, clay, salt rock, sandstone, soft limestone, gypsum, etc. | ||
517 | 0.35~1.05 120~50 | Soft formations with low compressive strength and high drillability, such as shale, clay, sandstone, soft limestone, etc. | ||
527 | 0.35~1.05 120~50 | Soft formations of compressive strength, such as shale, clay, sandstone, soft limestone, salt rock, anhydrite, etc. | ||
537 547 | 0.35~1.05 110~40 | Compressive strength, medium soft, with hard abrasive interlayer, such as hard shale, anhydrite, soft limestone, sandstone, etc | ||
617 627 | 0.35~1.05 80~40 | High compressive strength, medium to hard, with thick hard intercalations such as hard shale, limestone, dolomite, sandstone, etc | ||
637
| 0.70~1.20 70~40 | High compressive strength, high abrasive and medium hard formations such as limestone, dolomite, sandstone,flint,etc | ||
Company Information |
Hejian Hengji Bit Manufacture Co.,LTD is specialized in manufacturing high quality rock bit,especially for tricone bit,PDC bit,hole opener,single cone bit and drag bit.with advanced CNC machines and R&D team and on-time delivery. We have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices . We ship to more than 40 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe. Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop. Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim. We have been always insist on"Hengji bit,focusing on quality". |
|
