537
1
tianjin ,shanghai
water well,oil well,HDD,exploration,etc
100% New
| Quantity: | |
|---|---|

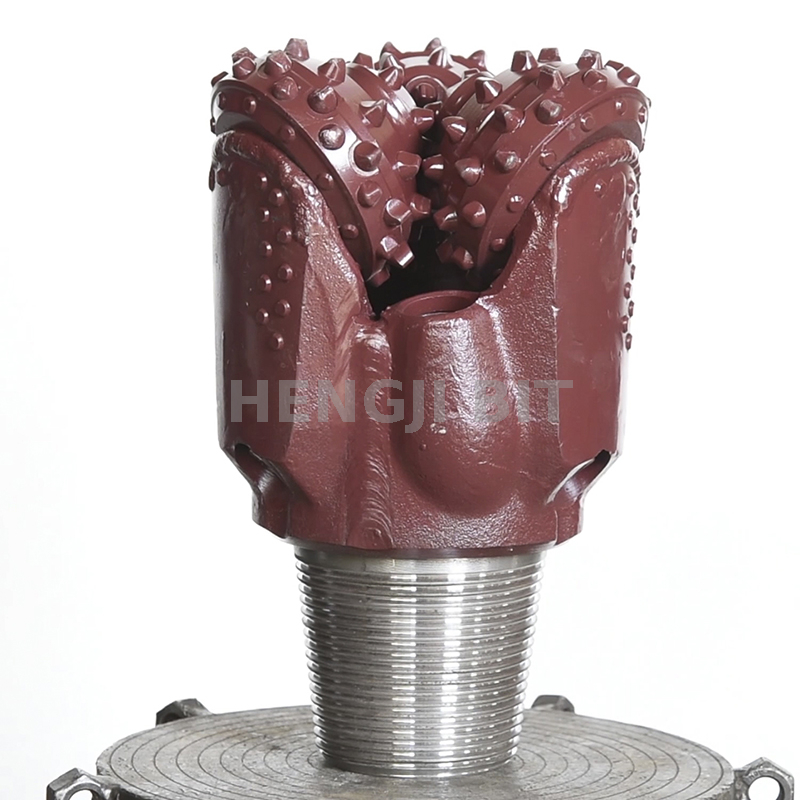

HENGJI BIT SPECIFICATION | |
Bit Size | 8 3/4'’ |
IADC Code | 537 |
Series | HR |
Tooth type | TCI/tungsten carbide insert |
Connection | 4 1/2 API REG PIN |
Bearing | rubber sealed bearing |
Nozzle | three jet nozzles |
Rotary Speed(rpm) | 120~50 |
Weight on Bit(KN/MM) | 0.45~1.0 |
Application | water well,oil well,HDD,exploration,etc |
Formation | Soft to medium formation with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,etc. |
MAIN STRUCTURE FEATURES
1. Journal bearing. Hardfaced head bearing surface.Inne hole of ocne is silve-plated.The load capacity and seizure resistance of the bearing is greatly improved.
2. O ring seal is mode of more wear resistant and high saturated buna-N with the increased seal section and precisely designed scaling flange in the cone sealing ares has increased the reliability of the seal.
3. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and thi provides the bearing system with good assurance of lubrication.
4. High weat resistance and excellent cutting ability pf the insert bit are given full play bu using carbide compacts of high strength and high toughness in comnination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel tooth tricone, the tooth surface is hard taced with new type of wear resistant material and thus has extended working life of the cutting structure while still maintaining high ROP.
HENGJI BIT:
There are full types of drill bits for your choosing in Hengji . Include TCI tricone bit,steel tooth tricone bit,single roller cone bit,pdc bit, hole opener,drag bit, etc.
Our bits are exported to global 58 countries. With good quality drill bits, we are the approved drill bits manufacturer and supplier for famous oil gas companies.As a good reputation OEM supplier, we are also a famous OEM manufacturer for famous companies.
ISO9001 & SGS Certified drill manufacturer, we are proud to bring you top-quality drill bits at good prices. Door to Door delivery service is available too. Send us a mail to get the best price now.
