Tricone bits are an essential tool in the drilling industry, particularly in the extraction of oil, gas, and water. These bits are designed to drill through various types of rock formations, making them highly versatile. But what exactly are tricone bits made of, and how do the materials used in their construction contribute to their effectiveness? In this research paper, we will explore the materials that make up tricone bits, their properties, and how they impact the performance of these crucial drilling tools. Understanding the composition of tricone bits is key to selecting the right bit for specific drilling conditions, which can significantly improve drilling efficiency and reduce operational costs.

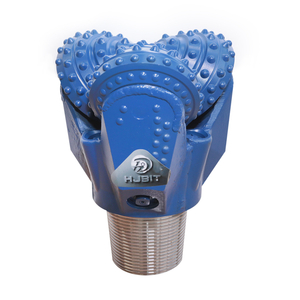

To fully grasp the importance of material selection in tricone bits, it is essential to first understand the structure of these bits. Tricone bits consist of three rotating cones, each equipped with cutting teeth or inserts. These cones are mounted on bearings and rotate as the bit is pushed into the ground. The materials used in the construction of the cones, teeth, and bearings must be able to withstand extreme pressures and temperatures, as well as the abrasive nature of the rock formations they encounter. In this paper, we will delve into the various materials used in tricone bits and how they contribute to the overall performance of the bit.
Additionally, we will discuss the different types of tricone bits available, including those designed for soft, medium, and hard rock formations. Each type of tricone bit is made from specific materials that are chosen to optimize performance in different drilling conditions. For example, tricone bits used in soft formations may have steel teeth, while those used in hard formations may feature tungsten carbide inserts. By understanding the materials used in tricone bits, drilling professionals can make informed decisions about which bit to use for their specific needs.
In this research, we will also explore the manufacturing processes involved in creating tricone bits, including the heat treatment and hardening processes that enhance the durability of the materials. Furthermore, we will examine the role of lubrication and sealing systems in protecting the bearings and extending the life of the bit. Finally, we will provide recommendations for selecting the right tricone bit based on the materials used and the specific drilling conditions.
Before diving into the specifics of tricone bit materials, it is important to note that not all tricone bits are created equal. The quality of the materials used can vary significantly between manufacturers, and this can have a major impact on the performance and longevity of the bit. For those looking to purchase high-quality tricone bits, it is recommended to explore reputable suppliers such as HJ Bits, which offers a wide range of tricone bits designed for various drilling applications.
One of the primary materials used in the construction of tricone bits is steel. Steel is used to create the body of the bit as well as the teeth in certain types of bits, particularly those designed for soft to medium rock formations. Steel is chosen for its strength, durability, and ability to withstand the high pressures encountered during drilling. However, steel teeth are not as hard as other materials, such as tungsten carbide, and may wear down more quickly when used in harder rock formations.
The steel used in tricone bits is typically heat-treated to increase its hardness and resistance to wear. This process involves heating the steel to a high temperature and then cooling it rapidly, which changes the microstructure of the material and makes it more durable. In addition to heat treatment, the steel may also be coated with materials such as chrome or nickel to further enhance its resistance to corrosion and wear.
For tricone bits designed to drill through harder rock formations, tungsten carbide inserts are often used in place of steel teeth. Tungsten carbide is an extremely hard material that is highly resistant to wear and can maintain its cutting edge even in the most challenging drilling conditions. This makes it ideal for use in tricone bits that will be subjected to high levels of abrasion and impact.
Tungsten carbide is a composite material made from tungsten and carbon. It is created by heating tungsten powder and carbon powder together at high temperatures, which causes the two materials to bond and form a dense, hard material. The resulting tungsten carbide inserts are then brazed onto the cones of the tricone bit, where they serve as the cutting edges that break through the rock.
The use of tungsten carbide inserts in tricone bits significantly increases the lifespan of the bit, as these inserts are much more resistant to wear than steel teeth. However, tungsten carbide inserts are also more expensive to produce, which can increase the cost of the bit. Despite the higher cost, many drilling professionals find that the increased durability and performance of tungsten carbide inserts make them a worthwhile investment, particularly when drilling in hard rock formations.
In addition to the materials used in the cutting elements of the tricone bit, the materials used in the bearings and seals are also critical to the performance of the bit. The bearings in a tricone bit allow the cones to rotate smoothly, while the seals protect the bearings from dirt, debris, and drilling fluids. The materials used in the bearings and seals must be able to withstand the extreme pressures and temperatures encountered during drilling, as well as the abrasive nature of the rock formations.
The bearings in tricone bits are typically made from high-strength steel or other alloys that are designed to resist wear and deformation. In some cases, the bearings may be coated with materials such as titanium or ceramic to further enhance their durability. The seals, on the other hand, are usually made from rubber or other elastomeric materials that can flex and maintain a tight seal even under high pressure.
The quality of the bearings and seals can have a major impact on the lifespan of a tricone bit. Poor-quality bearings may wear out quickly, causing the cones to seize up and rendering the bit useless. Similarly, if the seals fail, dirt and debris can enter the bearings and cause them to wear out prematurely. For this reason, it is important to choose tricone bits from reputable manufacturers that use high-quality materials in their bearings and seals. For example, HJ Bits offers tricone bits with high-quality bearings and seals that are designed to withstand the rigors of drilling in challenging conditions.
As mentioned earlier, heat treatment is a critical process in the manufacturing of tricone bits. This process is used to harden the steel used in the body and teeth of the bit, as well as the bearings. Heat treatment involves heating the steel to a high temperature and then cooling it rapidly, which changes the microstructure of the material and makes it more resistant to wear and deformation.
In addition to heat treatment, some tricone bits may also undergo surface hardening processes such as carburizing or nitriding. These processes involve adding carbon or nitrogen to the surface of the steel, which creates a hard, wear-resistant layer on the outside of the material. This can further enhance the durability of the bit and extend its lifespan.
Brazing is another important manufacturing process used in the production of tricone bits. This process is used to attach the tungsten carbide inserts to the cones of the bit. Brazing involves heating a filler metal, such as silver or copper, to a high temperature and then using it to bond the tungsten carbide inserts to the steel cones. The result is a strong, durable bond that can withstand the high pressures and temperatures encountered during drilling.
The quality of the brazing process is critical to the performance of the tricone bit. If the inserts are not properly bonded to the cones, they may come loose during drilling, which can cause the bit to fail. For this reason, it is important to choose tricone bits from manufacturers that use high-quality brazing techniques. HJ Bits is known for its high-quality brazing processes, which ensure that the tungsten carbide inserts are securely attached to the cones and can withstand the rigors of drilling.
In conclusion, the materials used in the construction of tricone bits play a critical role in their performance and durability. Steel is commonly used for the body and teeth of the bit, while tungsten carbide inserts are used in bits designed for harder rock formations. The bearings and seals are also made from high-strength materials that can withstand the extreme pressures and temperatures encountered during drilling. Additionally, the manufacturing processes used to create tricone bits, such as heat treatment and brazing, are essential to ensuring the durability and performance of the bit.
By understanding the materials and manufacturing processes used in tricone bits, drilling professionals can make informed decisions about which bit to use for their specific needs. For those looking for high-quality tricone bits, HJ Bits offers a wide range of options designed for various drilling applications. Whether you are drilling in soft, medium, or hard rock formations, selecting the right tricone bit can significantly improve drilling efficiency and reduce operational costs.
