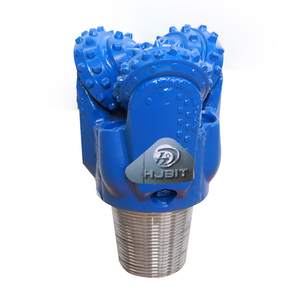

The tricone drilling bit is one of the most widely used tools in the drilling industry, especially in oil, gas, and water well drilling. Its design, which includes three rotating cones with teeth, allows for efficient drilling through various formations. However, selecting the right tricone drilling bit for a specific project can be a complex task. Factors such as rock formation, drilling conditions, and bit specifications must be considered to ensure optimal performance and cost-effectiveness. In this paper, we will explore the key considerations when selecting a tricone drilling bit, including the types of bits available, their applications, and the factors that influence their performance.
Selecting the right tricone drilling bit is crucial for maximizing drilling efficiency and minimizing operational costs. This guide will delve into the different types of tricone bits, their applications, and the factors to consider when choosing the most suitable bit for your drilling needs. Whether you're drilling through soft, medium, or hard formations, understanding the nuances of tricone bit selection can significantly impact the success of your project. For more information on the various types of tricone bits, visit our tricone drilling bit page.
Tricone drilling bits are classified based on the type of formation they are designed to drill through. The three main categories are:
Soft Formation Bits (IADC Codes 1-2): These bits are designed for drilling through soft formations such as clay, sand, and soft limestone. They have long, widely spaced teeth that allow for efficient cutting and removal of soft materials.
Medium Formation Bits (IADC Codes 3-4): These bits are suitable for drilling through medium-hard formations such as shale, dolomite, and limestone. They have shorter, more closely spaced teeth to handle the increased hardness of the formation.
Hard Formation Bits (IADC Codes 5-8): Designed for drilling through hard rock formations such as granite, basalt, and quartzite, these bits have very short, closely spaced teeth that can withstand the high pressures and temperatures associated with hard rock drilling.
Each type of tricone bit is further classified by its tooth design, which can be either milled tooth or tungsten carbide insert (TCI). Milled tooth bits are typically used for softer formations, while TCI bits are more suitable for harder formations. The choice between these two types depends on the specific drilling conditions and the formation being drilled. For a comprehensive overview of the different types of tricone bits, check out our tricone drilling bit resource.
The type of formation you are drilling through is perhaps the most critical factor in selecting a tricone drilling bit. As mentioned earlier, different bits are designed for different formation types. Using the wrong bit for a specific formation can lead to reduced drilling efficiency, increased wear and tear on the bit, and higher operational costs. For example, using a soft formation bit in a hard rock formation will result in rapid wear of the teeth, while using a hard formation bit in a soft formation will lead to inefficient drilling and excessive energy consumption.
The size and diameter of the tricone bit must be compatible with the drilling equipment and the size of the borehole. Tricone bits are available in a wide range of sizes, from small bits for shallow drilling to large bits for deep well drilling. The size of the bit also affects the rate of penetration (ROP) and the overall efficiency of the drilling process. A larger bit may be required for drilling large-diameter boreholes, but it may also require more power and generate more heat, which can affect the longevity of the bit.
Tricone bits come with different types of bearings, including open roller bearings, sealed roller bearings, and sealed journal bearings. The choice of bearing type depends on the drilling conditions and the expected lifespan of the bit. Open roller bearings are suitable for shallow drilling and low-cost operations, while sealed roller and journal bearings are designed for deep drilling and high-temperature environments. Sealed bearings offer better protection against debris and extend the life of the bit, but they are also more expensive.
The hydraulic design of the tricone bit is another important factor to consider. The bit must be able to efficiently remove cuttings from the borehole to prevent clogging and ensure smooth drilling. Bits with optimized hydraulic designs have strategically placed nozzles that direct the flow of drilling fluid to the cutting surface, improving the removal of cuttings and reducing the risk of bit balling. The hydraulic design also affects the cooling of the bit, which is crucial for maintaining its performance and longevity in high-temperature drilling environments.
Tricone drilling bits are used in a wide range of applications, including:
Oil and Gas Drilling: Tricone bits are commonly used in the oil and gas industry for drilling through various formations, from soft sedimentary rocks to hard igneous rocks.
Water Well Drilling: Tricone bits are also used for drilling water wells, particularly in areas with hard rock formations that require durable and efficient drilling tools.
Mining and Quarrying: In the mining and quarrying industries, tricone bits are used for drilling blast holes and exploration wells in hard rock formations.
Geothermal Drilling: Tricone bits are used in geothermal drilling projects to access hot rock formations and extract geothermal energy.
Each of these applications requires a specific type of tricone bit, depending on the formation being drilled and the desired outcome. For example, in oil and gas drilling, a TCI bit may be preferred for drilling through hard rock formations, while a milled tooth bit may be more suitable for drilling through soft sedimentary rocks. To learn more about the various applications of tricone bits, visit our tricone drilling bit page.
Selecting the right tricone drilling bit is essential for ensuring efficient and cost-effective drilling operations. By considering factors such as formation type, bit size, bearing type, and hydraulic design, you can choose a bit that is well-suited to your specific drilling conditions. Additionally, understanding the different types of tricone bits and their applications can help you make informed decisions that will enhance the performance and longevity of your drilling equipment.
Whether you're drilling for oil, gas, water, or minerals, the right tricone bit can make a significant difference in the success of your project. For more information on how to select the best tricone bit for your needs, explore our comprehensive tricone drilling bit guide.
