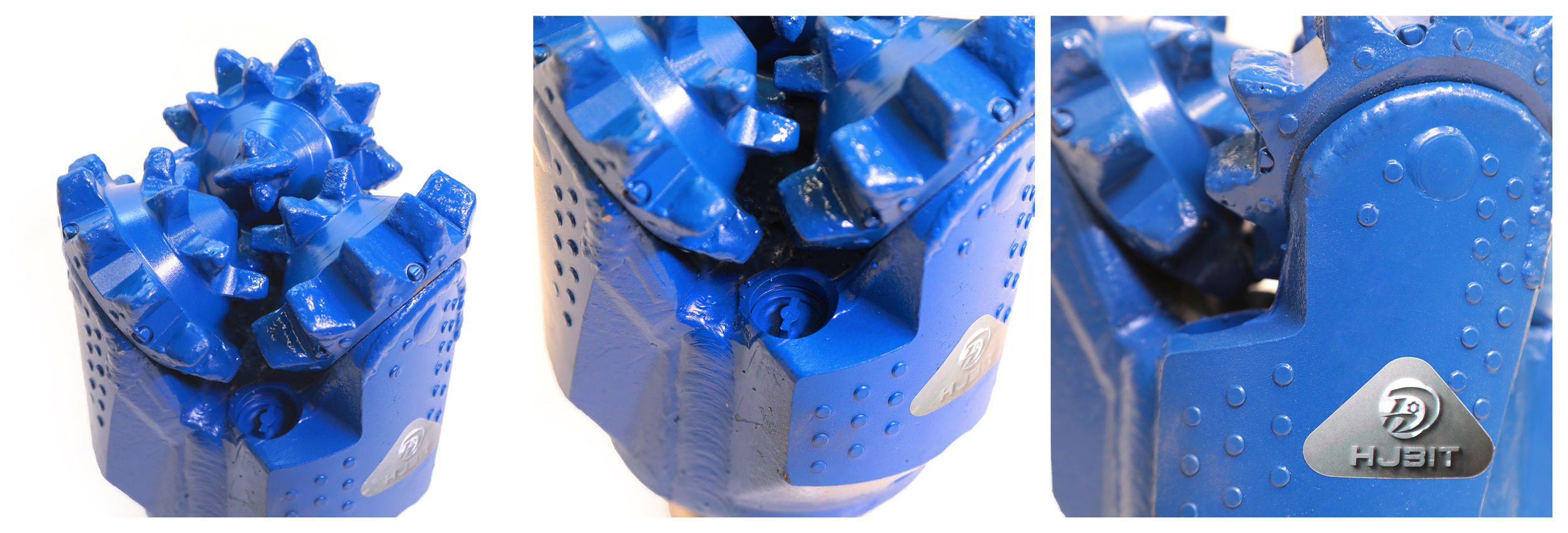

The 6''152mm IADC 117 Milled Tooth Tricone Roller Bit is a reliable solution for drilling in very soft formations. This bit is designed for use in applications such as water well drilling, oil & gas well drilling, and geothermal drilling.
It is equipped with milled steel teeth that offer durability and a consistent penetration rate. The bit features an elastomer sealed bearing to ensure smooth operation by preventing mud fluid from entering the bearing system.
The bit comes with three jet nozzles for optimal fluid distribution, cleaning the cones during the drilling process. Gauge protection and shirttail protection are available to further extend the life of the bit.
With an operating range of RPM 180~60 and WOB 0.3~0.75 kN, this tricone roller bit performs well in very soft formations like clay, mudstone, and chalk. It’s ideal for drilling projects that require high drillability and low compressive strength formations.
As a trusted manufacturer and supplier, HJ Bit offers cost-effective solutions and excellent aftermarket services for clients worldwide. The product is available for sale and can be customized based on specific needs.
HENGJI BIT SPEC | IADC CODE 117 | |
Diameter | 6"(152mm) | |
Tooth Type | Milled tooth/steel tooth | |
Bearing Type | Elastomer sealed bearing | |
Circulation Type | Mud fluid | |
Thread Connection | 3 1/2 API REG PIN | |
Nozzle | three jet nozzles | |
Gauge Protection | Available | |
Shirttail Protection | Available | |
Operating Parameters | ||
RPM(r/min) | 180~60 | |
WOB(KN) | 0.3~0.75 | |
Formations | Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc | |
Application | water well drilling,oil &gas well drilling ,HDD,exploration,geothermal well drilling,drilling projects,etc | |
High-Quality Tooth Surface: Welded with wear-resistant material to extend bit life and maintain a consistent penetration rate.
Optimized Tooth Design: Thicker, more aggressive wear-resistant alloy enhances the tooth structure, improving overall performance.
Rubber Sealed Bearing: Ensures long-lasting sealing to prevent mud fluid intrusion and guarantees smooth operation.
Versatile Cutting: Ideal for very soft formations such as clay, mudstone, and chalk with high drillability.
Durable Tooth Life: Steel tooth bit maintains high penetration rates and extends cutting tooth lifespan.
Improved Drilling Speed: Thicker wear-resistant alloy enhances wear resistance and increases mechanical drilling speed.
Water Well Drilling: Suitable for soft to medium formations.
Oil & Gas Well Drilling: Performs well in soft rock formations.
HDD (Horizontal Directional Drilling): Ideal for trenchless applications.
Exploration: Effective in resource exploration drilling.
Geothermal Well Drilling: Performs in challenging geothermal conditions.
General Drilling Projects: Perfect for deep foundation hole expansion and other drilling tasks.
Wood Box Packaging: Standard packaging for safe delivery.
Fumigation Tray: Used when necessary for international shipping.
Custom Packaging: Available based on customer requirements.
Prepared for Delivery: Within 1 week if in stock.
Out of Stock: Delivery time depends on order quantity.
Transportation Methods: By sea or air.
Q: How does the design of the bit contribute to its performance?
A: The bit features a high-quality welded tooth surface for enhanced penetration rates and an optimized tooth design to improve wear resistance and drilling speed.
Q: Can the bit be customized based on specific needs?
A: Yes, HJ Bit offers tailored solutions for unique drilling requirements, ensuring the best performance for each project.
Q: What packaging options are available for this product?
A: The bit is packaged in wood boxes, with fumigation trays available if necessary. Custom packaging can also be provided based on the customer's needs.
Q: How soon can I receive the product after ordering?
A: If the product is in stock, it can be shipped within 1 week. Delivery time may vary depending on order quantity when out of stock.
Q: How is the product delivered?
A: The product can be delivered by sea or air, depending on your location and order specifications.
