Introduction

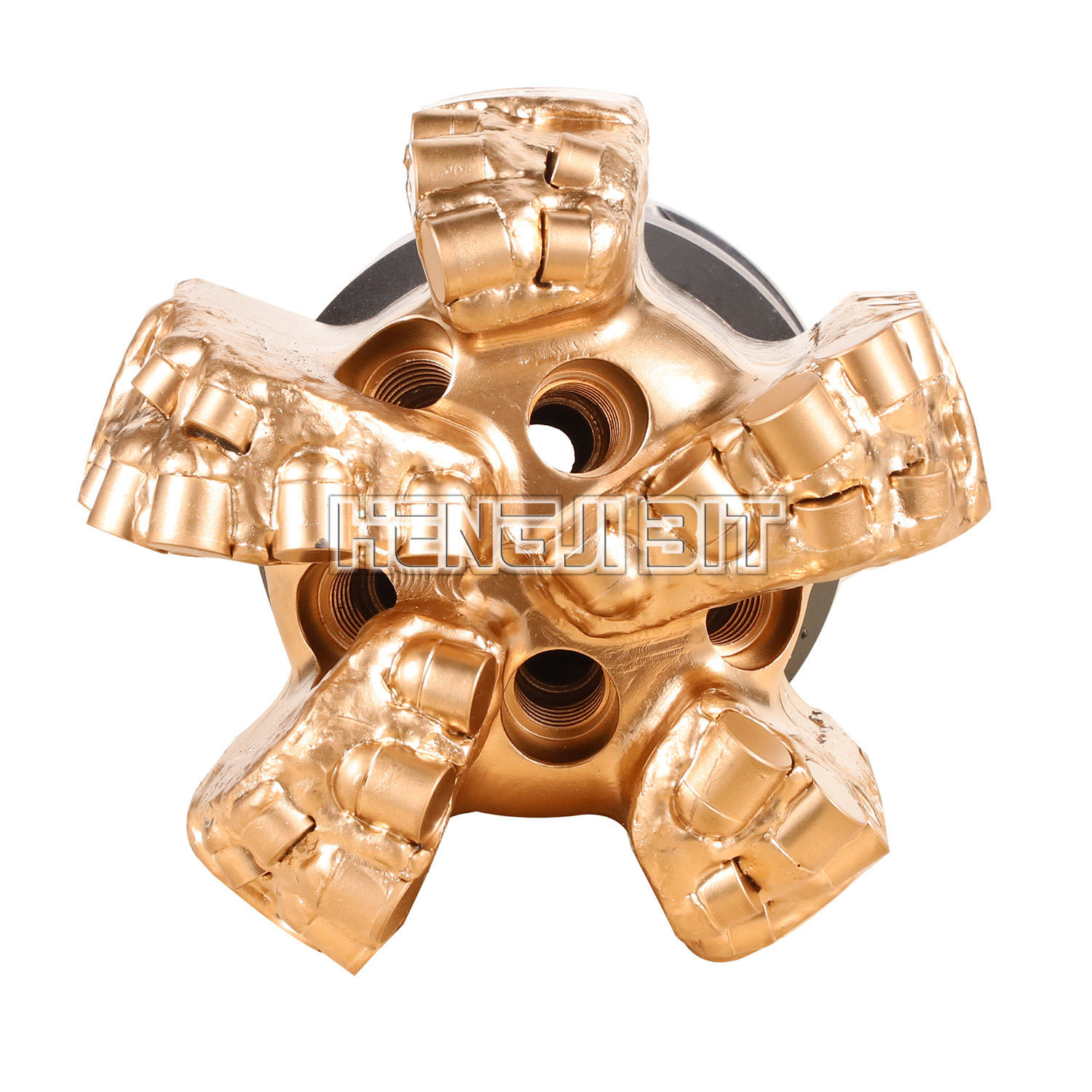

The Steel Body PDC Bit is highly effective in soft to medium hard formations with lower compressive strength, resulting in improved Rate of Penetration (ROP).
Features
Durasef Gauge: This incredibly durable material enhances the resistance to wear on the gauge, extending the lifespan of the bit.
Hydraulics: The hydraulic design ensures optimal movement and cooling of cuttings, matching the chip quantity and displacement of each blade.
Special Backrake Design: The addition of a Backrake prevents the bit from becoming stuck during drilling operations.
Technology
Unique Blade Design: By incorporating cutting-edge cutting teeth and a distinctive curved blade design, the ability to drill through hard interlayers is significantly enhanced.
Basical Specification | |
Size of bit | 6 3/4’’ |
Number of Blades | 5 |
Primary Cutter Size | 13mm |
Nozzle Qty. | 5NZ |
Thread Connection | 3 1/2 REG |
Operating Parameters | |
RPM (r/min) | 60~300 |
WOB(KN) | 10~100 |
Application | Medium-hard to hard formations with low compressive strength, such as hard shale, limestone, sand-stone, dolomite, hard gypsum, marble, etc. |
Regular Models
PDC 3 7/8''
PDC 4 5/8''
PDC 4 3/4''
PDC 5 1/2''
Tricone 5 7/8''537
Tricone 14 3/4'' 117
Tricone 12 1/4'' 537
Tricone 10 5/8'' 537
Tricone 20'' 637
Tricone 15 1/2'' 517
Tricone 14 3/4'' 637
Tricone 12 1/4'' 637
Tricone 12 1/4'' 437
Tricone 8 3/4'' 617
Tricone 12 1/4'' 537
Tricone 9 7/8'' 517
Drag bit 9 7/8''
Drag bit 15''
Drag bit 8 1/2''
Drag bit 7 1/2''
Tricone 22''517
Tricone 20'' 127
Tricone 17 1/2'' 217
Tricone 17 1/2'' 637
Hole opener 18''
Hole opener 14''
Hole opener 16''
Hole opener 12 1/4''
Tricone 9 5/8'' 737
Tricone 9 5/8'' 637
Single cone 8 1/2''
Single cone 8 1/2''
