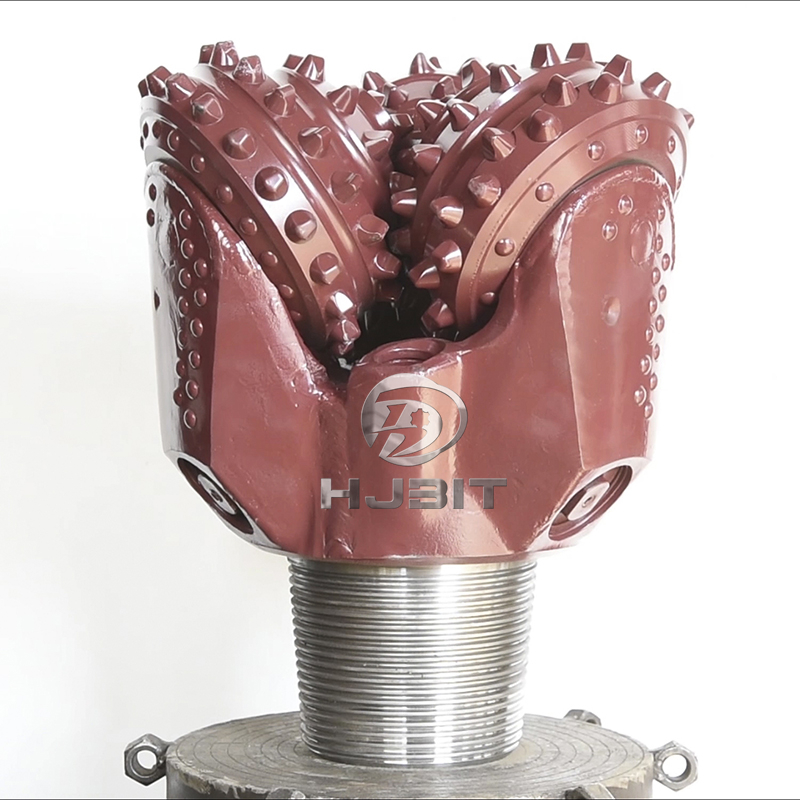

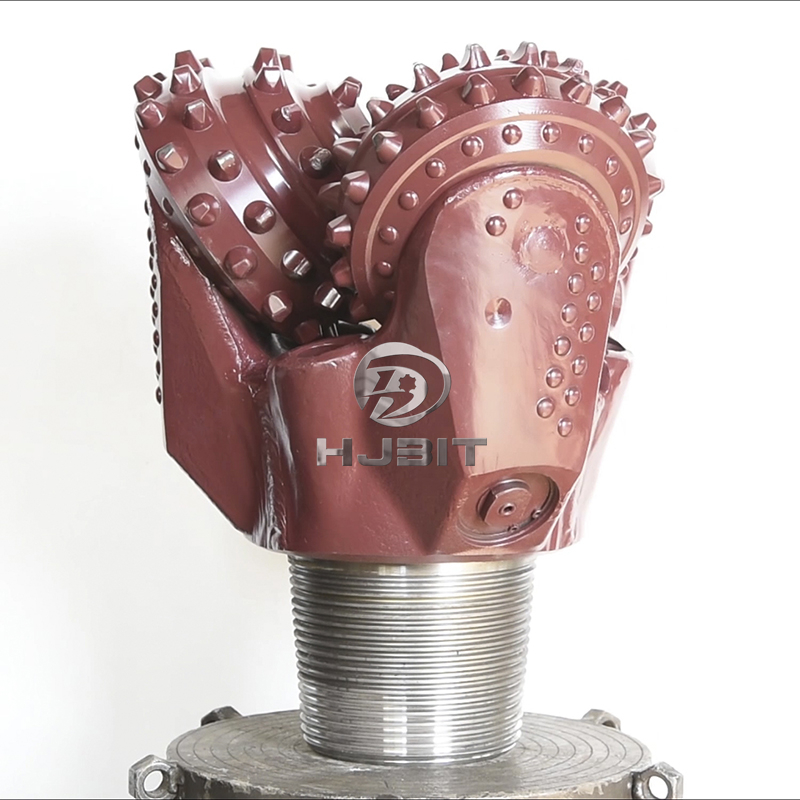

12 1/4'' TCI 3 Cone Roller Bit Three Cone Drill Head

Availability:

Quantity:



Inquire Add to Basket

Product Description

Introduction:

HENGJI BIT SPEC --- IADC CODE 537
Diameter	12 1/4"(311mm)
Tooth Type	TCI
Bearing Type	Elastomer sealed bearing
Circulation Type	Mud fluid
Thread Connection	6 5/8 API REG PIN
Nozzle	three jet nozzles
Gauge Protection	Available
Shirttail Protection	Available
Operating Parameters
RPM(r/min)	120~50
WOB(KN)	0.45~1.0
Formations	Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.
Application	water well,oil well,HDD,exploration,etc

8 34

The tricone bit is primarily utilized in drilling, exploration, petroleum, and trenchless operations as a pilot bit.

Based on the type of bearing, the tricone rock bit can be further categorized into metal seal bearing and rubber seal bearing.

When it comes to the cutting material, the tricone bit can be divided into Steel tooth Bit and TCI bit.

To enhance the durability of the Steel tooth bit, a new wear-resistant material is utilized to weld the tooth surface. This ensures a high penetration rate and prolongs the lifespan of the cutting tooth.

The TCI bit utilizes hard alloy teeth with high strength and toughness. The tooth row number, tooth number, tooth exposure height, and unique alloy tooth shape are all optimized, allowing the TCI bit to exhibit exceptional wear resistance and cutting ability.

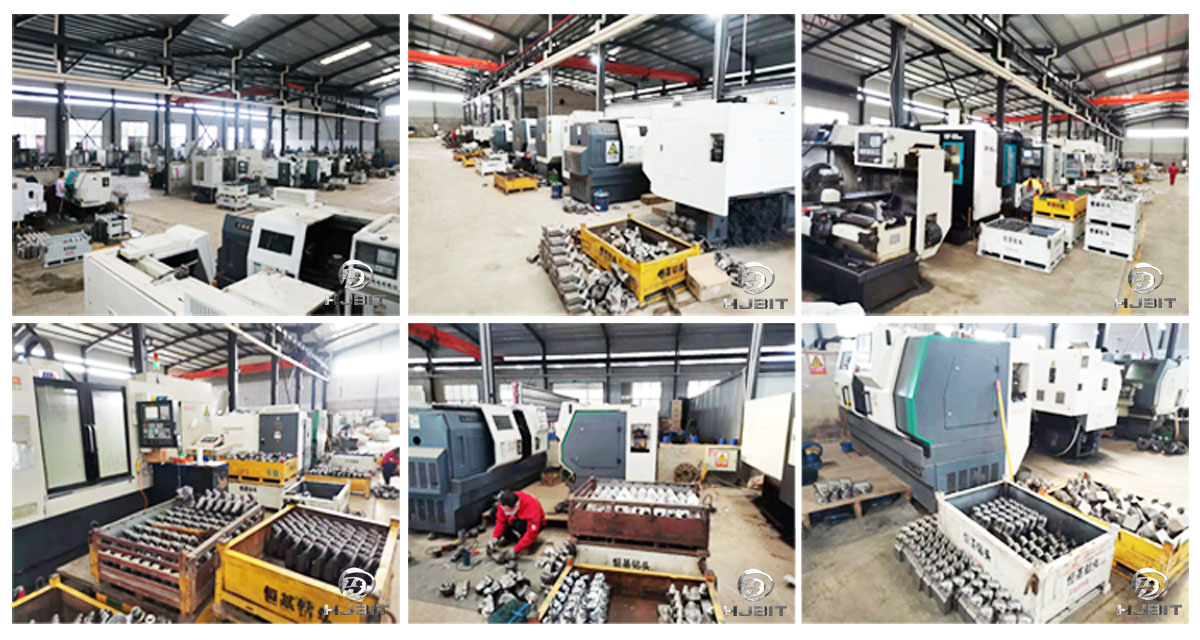

2022.12.6-1副本_副本

There are full types of drill bits for your choosing in Hengji . Include TCI tricone bit,steel tooth tricone bit,single roller cone bit,pdc bit, hole opener,drag bit, etc.

Our bits are exported to global 58 countries. With good quality drill bits, we are the approved drill bits manufacturer and supplier for famous oil gas companies.As a good reputation OEM supplier, we are also a famous OEM manufacturer for famous companies.

ISO9001 & SGS Certified drill manufacturer, we are proud to bring you top-quality drill bits at good prices. Door to Door delivery service is available too. Send us a mail to get the best price now.

Regular Models

8 3/4'' 617
