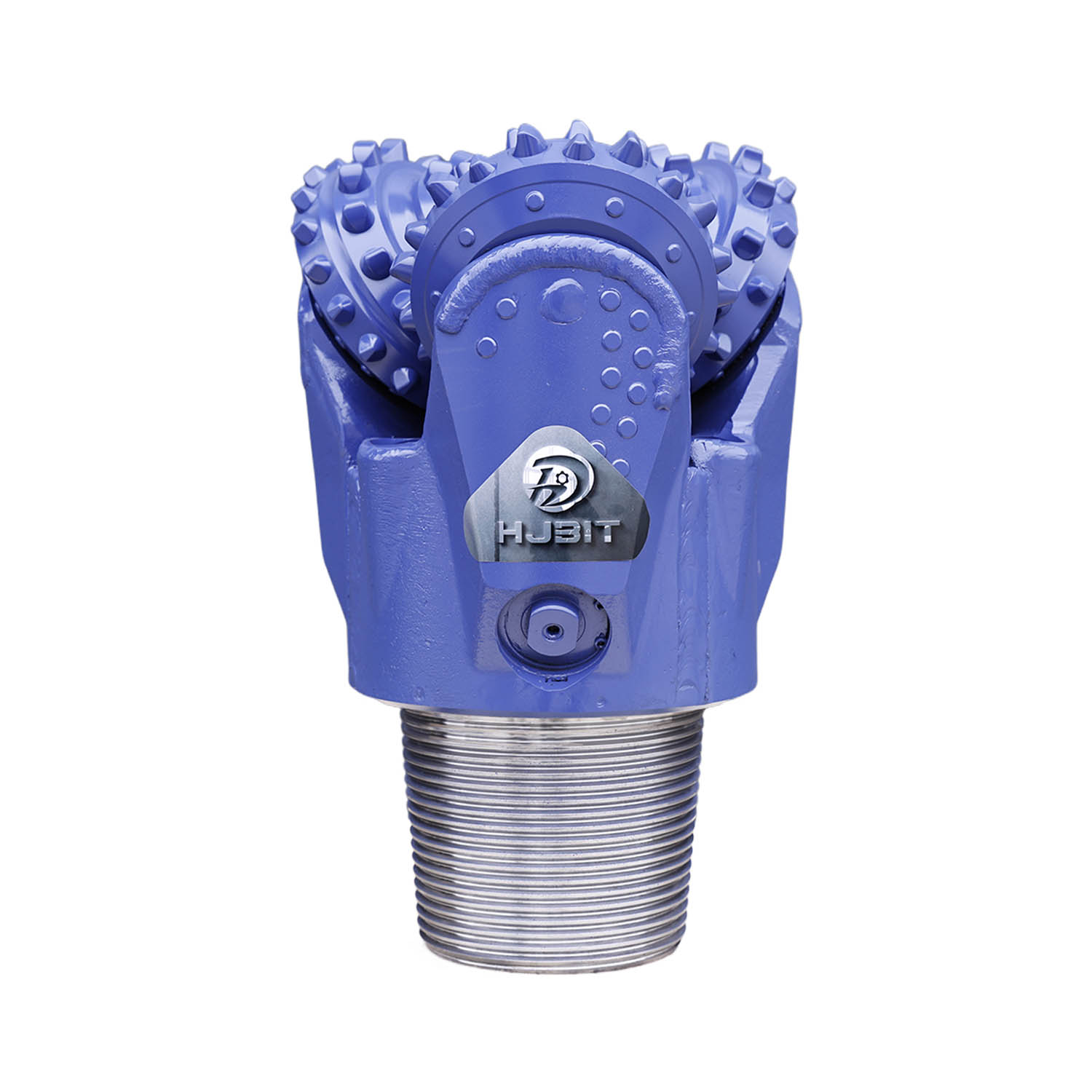

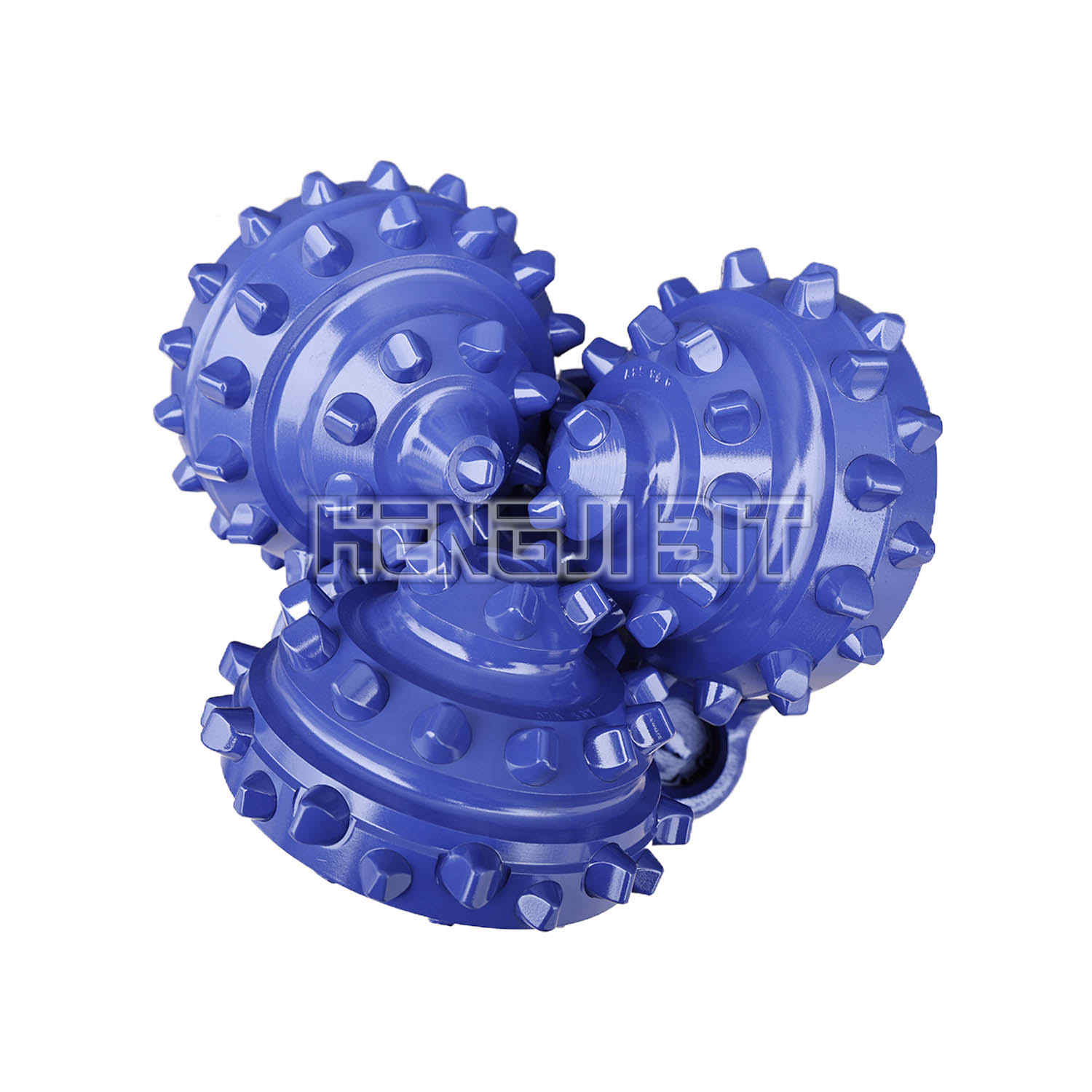

The 9 7/8 inches 250mm IADC CODE 537 Tricone Insert Drill Bit vertical well drill bit is a widely applied rotary drilling tool manufactured to API Spec 7-1 standard. Equipped with pressed tungsten carbide inserts, it relies on impact and crushing force to break rock. It is the preferred bit for soft to medium formation , highly abrasive formations.
HENGJI BIT SPECIFICATION | |
Bit Size | 9 7/8'' (250.8mm) |
IADC Code | 537 |
Series | HR |
Tooth type | TCI/tungsten carbide insert |
Connection | 6 5/8 API REG PIN |
Bearing | rubber sealed bearing |
Nozzle | three jet nozzles |
Rotary Speed(rpm) | 120~50 |
Weight on Bit(KN/MM) | 0.45~1.0 |
Application | water well,oil well,HDD,exploration,etc |
Formation | Soft to medium formation with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,etc. |
Tungsten Carbide Inserts
High hardness, excellent abrasion resistance. Multiple insert shapes available: spherical, conical, chisel, wedge shape for different rocks.
Optional Bearing Systems
Sealed roller bearing
Sealed journal bearing
Long service life under heavy weight-on-bit.
API Standard Manufacturing
Made per API Spec 7-1, standard API REG thread connections. Complete IADC codes ranging from 417 to 837.
Optimized Hydraulic Design
Multi-nozzle configuration for efficient cuttings cleaning and bit cooling.
Hardfacing Protection
Hard metal overlay on cone surfaces and bit legs to resist erosion and abrasion.
IADC 417/437: Medium-hard, slightly abrasive rock
IADC 517/537: Medium-hard to hard formations
IADC 617/637: Hard, abrasive strata
IADC 717/737: Extra hard, highly abrasive bedrock such as granite and basalt
Oil & Gas DrillingDrilling of intermediate and target sections in onshore and offshore oil/gas wells; directional well and horizontal well drilling through hard bedrock; deep exploration wells.
Geothermal & Deep Water Well DrillingDeep water wells, geothermal heating wells, boreholes passing through hard bedrock strata.
Mining EngineeringOpen-pit mine blast hole drilling; underground mineral exploration drilling; ore body delineation.
Construction Foundation DrillingBridge and building pile foundation drilling; anchor bolt holes for slope reinforcement; engineering geological investigation boreholes.
Geological ProspectingRegional geological survey, mineral resource exploration drilling projects.
