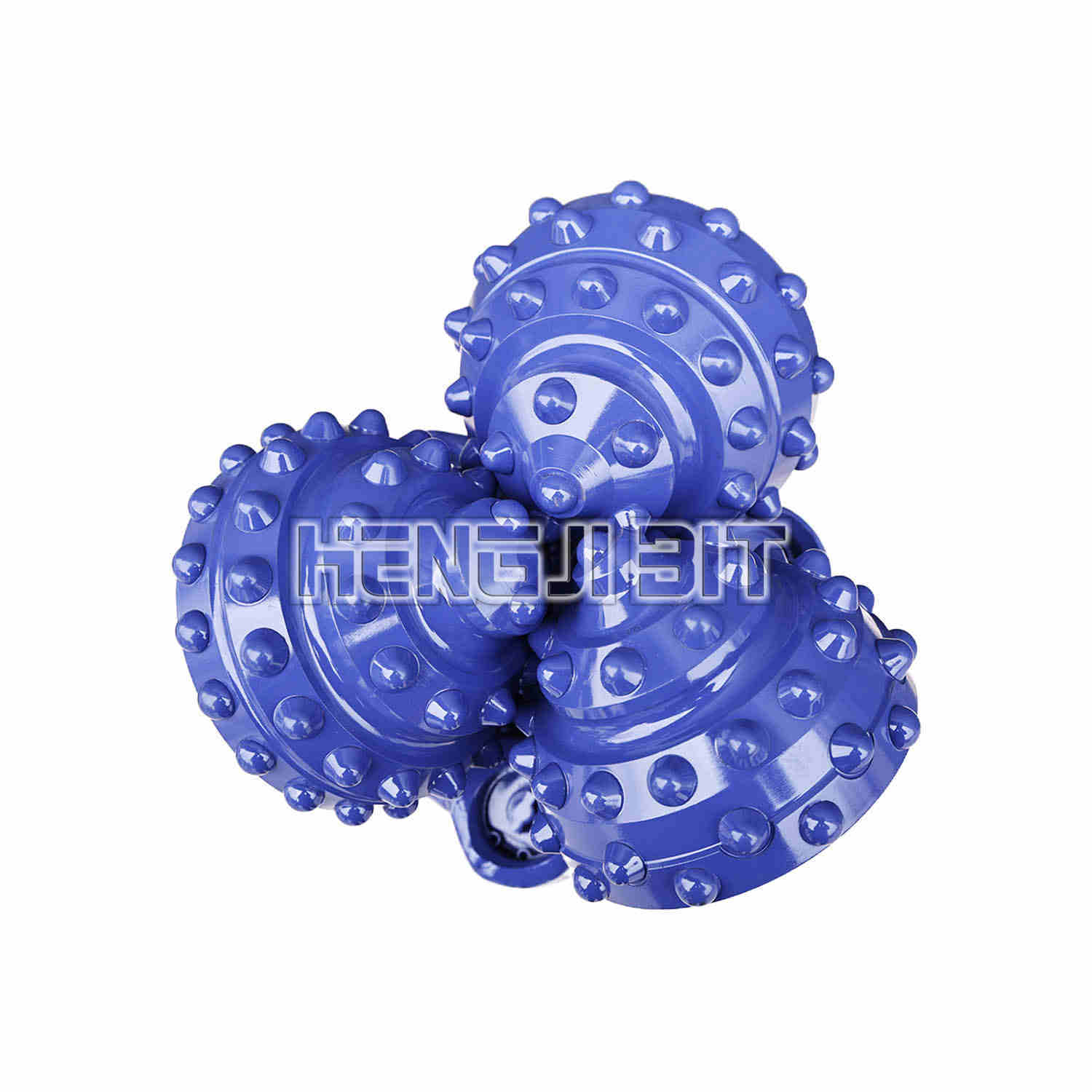

8 3/4 inches IADC 635 geotechnical drilling tricone tci rock bit hard formation

Model:
637
Min. Order:
1
Port:
tianjin ,shanghai
Usage:
water well,oil well,HDD,exploration,etc
Condition:
100% New

Availability:

Quantity:



Inquire Add to Basket

Product Description

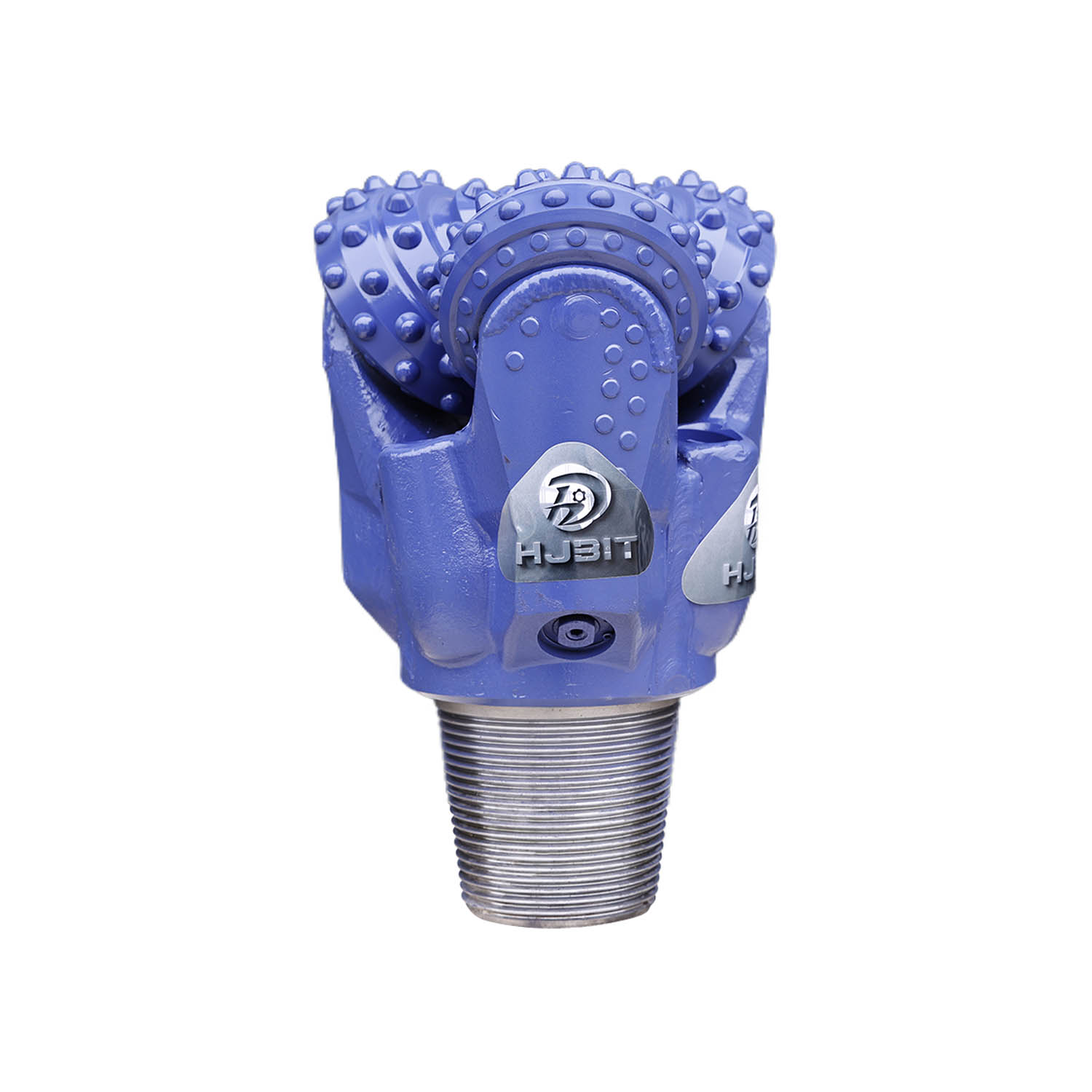

TCI Tricone Bit Introduction

1.TCI tricone bit, full name Tungsten Carbide Insert Tricone Bit .

It is one main type of rotary tricone drill bit. Hard tungsten carbide inserts are pressed into pre-machined holes on three cones. While drilling, the carbide inserts impact, crush and shear rock formations. Contrast: Steel tooth (milled tooth) bits have teeth integrated with cones without embedded carbide buttons.

2. Structure & Key Features

Tungsten Carbide Inserts
High hardness, excellent abrasion resistance. Multiple insert shapes available: spherical, conical, chisel, wedge shape for different rocks.
Optional Bearing Systems

Sealed roller bearing
Sealed journal bearing
Long service life under heavy weight-on-bit.

API Standard Manufacturing
Made per API Spec 7-1, standard API REG thread connections. Complete IADC codes ranging from 417 to 837.
Optimized Hydraulic Design
Multi-nozzle configuration for efficient cuttings cleaning and bit cooling.
Hardfacing Protection
Hard metal overlay on cone surfaces and bit legs to resist erosion and abrasion.

HENGJI BIT SPECIFICATION
Bit Size	8 3/4'' (222.3mm)
IADC Code	635
Series	HR
Tooth type	TCI/tungsten carbide insert
Connection	4 1/2 API REG PIN
Bearing	rubber sealed bearing
Nozzle	three jet nozzles
Rotary Speed(rpm)	80~40
Weight on Bit(KN/MM)	0.5~1.2
Application	water well,oil well,HDD,exploration,etc
Formation	Hard formations with high compressive strength,such as sandstone,limestone,dolomite,etc.
