Roller cone bits are a crucial tool in the oil and gas industry, as well as in other sectors that require drilling through hard formations. These bits are designed to crush and grind rock formations, allowing for efficient drilling operations. Understanding how roller cone bits work is essential for optimizing their use in various applications. This paper will delve into the mechanics of roller cone bits, their design features, and their applications in different industries. Additionally, we will explore the advantages and limitations of roller cone bits compared to other types of drilling bits.
In this research, we will also provide insights into the different types of roller cone bits available, their working principles, and the factors that influence their performance. By the end of this paper, readers will have a comprehensive understanding of roller cone bits and how they contribute to efficient drilling operations. For more information on the different types of roller cone bits, you can explore the roller cone bits used in various drilling applications.

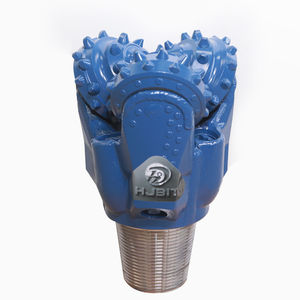

Roller cone bits are designed with multiple cones, typically three, that rotate as the bit is pushed into the ground. Each cone is equipped with teeth or inserts that crush and grind the rock formations. The cones rotate on bearings, which allow them to move independently of the bit body. This design enables the bit to crush and shear rock formations efficiently.
The teeth or inserts on the cones are made from materials such as tungsten carbide, which is highly durable and resistant to wear. The shape and arrangement of the teeth or inserts vary depending on the type of formation being drilled. For example, bits designed for soft formations may have larger, more widely spaced teeth, while bits for hard formations have smaller, more closely spaced inserts. The IADC 537 sealed bearing insert tri-cone drill bit is an example of a bit designed for medium to hard formations.
The bearings in roller cone bits are critical to their performance. These bearings allow the cones to rotate smoothly and reduce friction between the cones and the bit body. There are two main types of bearings used in roller cone bits: open bearings and sealed bearings. Open bearings are exposed to the drilling fluid, which helps to cool and lubricate them. However, they are more susceptible to wear and contamination. Sealed bearings, on the other hand, are protected from the drilling fluid and contaminants, which extends their lifespan. Sealed bearings are commonly used in bits designed for hard formations, such as the IADC 637 hard drilling conical roller tricone bit.
The working principle of roller cone bits is based on the rotation of the cones as the bit is pushed into the formation. As the cones rotate, the teeth or inserts on the cones crush and grind the rock. The weight of the drill string and the rotational force applied by the drilling rig drive the cones into the formation, allowing them to break the rock into smaller pieces. The drilling fluid, which is pumped through the bit, helps to cool the bit and carry the rock cuttings to the surface.
The efficiency of a roller cone bit depends on several factors, including the weight on bit (WOB), the rotational speed (RPM), and the type of formation being drilled. For example, in soft formations, a higher RPM and lower WOB may be used to maximize drilling speed. In contrast, in hard formations, a lower RPM and higher WOB may be required to achieve the desired penetration rate. The IADC 637 roller cone bit is designed for hard formations and can withstand high WOB and low RPM conditions.
The cutting action of roller cone bits is a combination of crushing and shearing. As the cones rotate, the teeth or inserts make contact with the rock, crushing it into smaller pieces. The shearing action occurs as the cones rotate and drag the teeth across the rock surface, breaking it apart. This combination of crushing and shearing makes roller cone bits highly effective in a wide range of formations, from soft clays to hard rock.
The design of the teeth or inserts plays a crucial role in determining the cutting action of the bit. For example, bits with larger, more aggressive teeth are better suited for soft formations, while bits with smaller, more closely spaced inserts are ideal for hard formations. The IADC 517 oilfield drill bit is an example of a bit designed for medium formations, with a balance of crushing and shearing action.
Roller cone bits are used in a wide range of drilling applications, including oil and gas exploration, geothermal drilling, and water well drilling. Their versatility and ability to handle different types of formations make them a popular choice for many drilling operations. In oil and gas exploration, roller cone bits are commonly used to drill through hard rock formations, such as shale and limestone. They are also used in geothermal drilling, where high temperatures and hard formations are common.
In addition to their use in oil and gas exploration, roller cone bits are also used in water well drilling. In this application, they are often used to drill through soft to medium formations, such as sand and clay. The ability of roller cone bits to handle a wide range of formations makes them a valuable tool in water well drilling operations.
One of the main advantages of roller cone bits is their versatility. They can be used in a wide range of formations, from soft clays to hard rock. This makes them a popular choice for drilling operations where the formation type may vary. Additionally, roller cone bits are relatively durable and can withstand the high stresses associated with drilling through hard formations.
Another advantage of roller cone bits is their ability to handle high weight on bit (WOB) and low rotational speeds (RPM). This makes them ideal for drilling through hard formations, where high WOB and low RPM are required to achieve the desired penetration rate. Roller cone bits are also relatively easy to maintain, with replaceable teeth or inserts that can be replaced when they become worn.
In conclusion, roller cone bits are a versatile and effective tool for drilling through a wide range of formations. Their design, which combines crushing and shearing action, allows them to handle both soft and hard formations with ease. The use of durable materials, such as tungsten carbide, ensures that roller cone bits can withstand the high stresses associated with drilling operations. Additionally, the ability to replace worn teeth or inserts makes roller cone bits a cost-effective option for many drilling operations.
As drilling technology continues to evolve, roller cone bits will likely remain a popular choice for many drilling applications. Their versatility, durability, and ability to handle a wide range of formations make them an essential tool in the oil and gas industry, as well as in other sectors that require drilling through hard formations. For more detailed information on roller cone bits and their applications, you can explore the composition of tricone bits and their specific uses.
