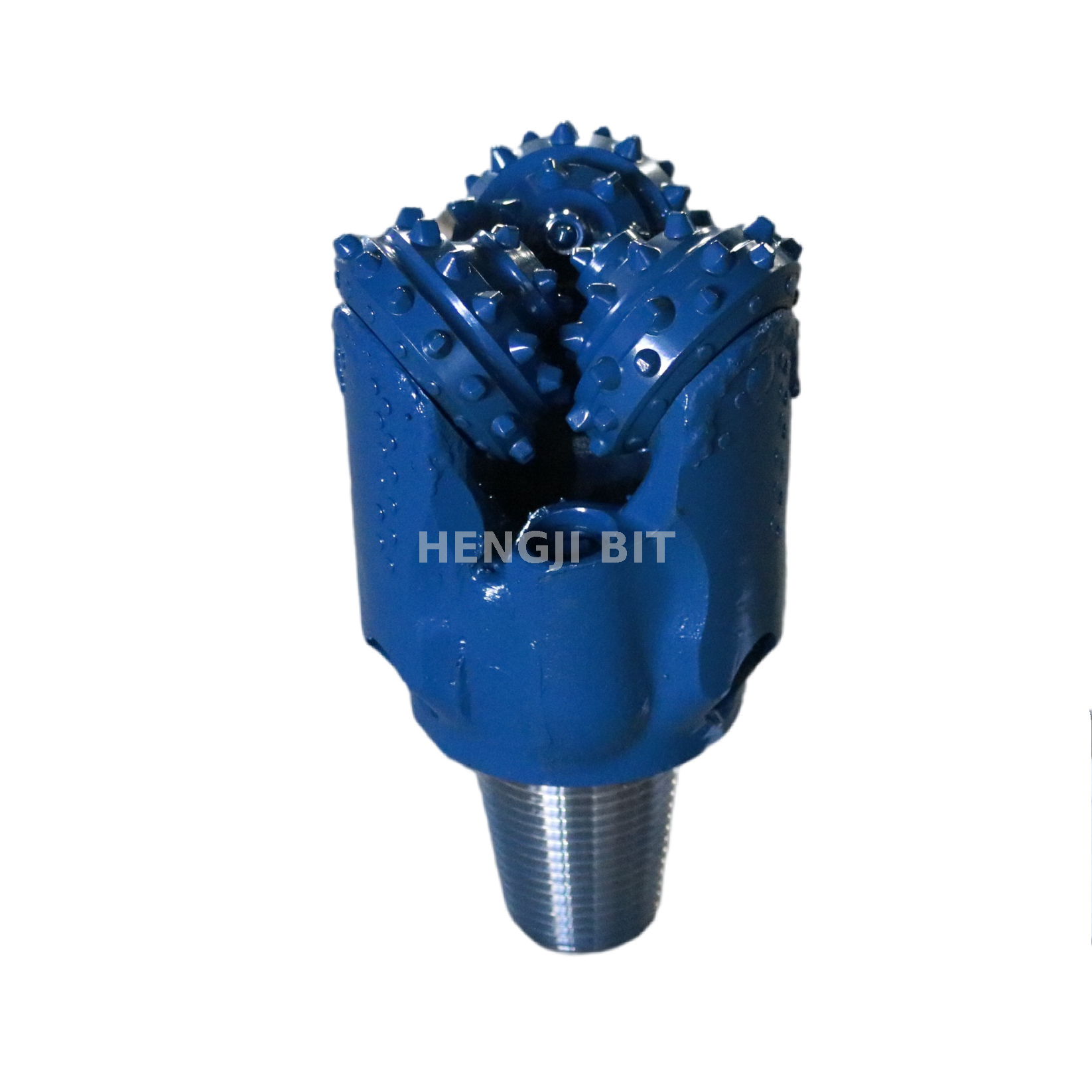

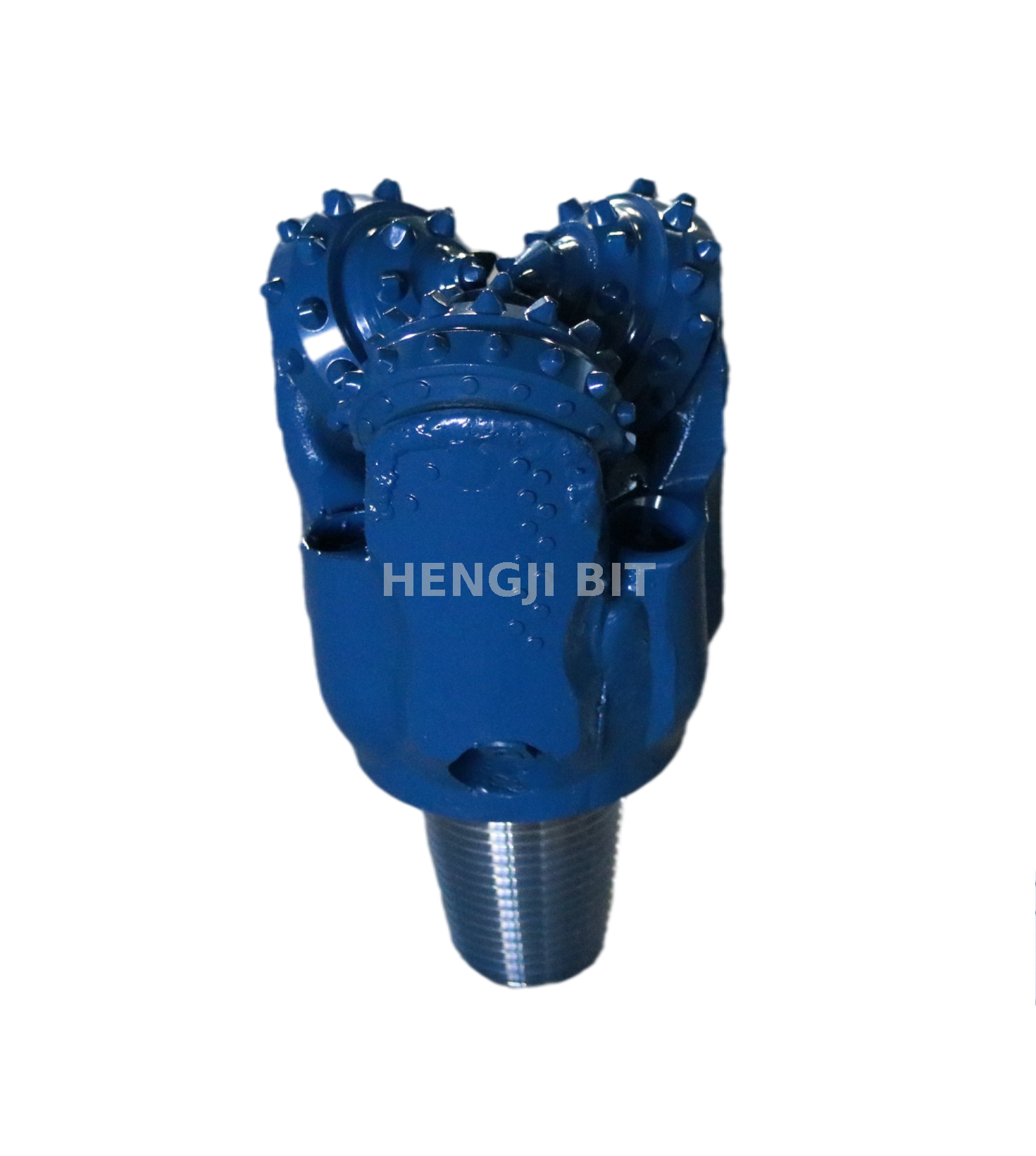

5 5/8'' IADC 517X Tungsten Carbide Button Rock Drilling Tricone Bits

  • 517X

  • 1

  • tianjin ,shanghai

  • water well,oil well,HDD,exploration,etc

  • 100% New

Availability:


                                          HENGJI BIT SPECIFICATION

 Bit Size

5 5/8''

 IADC Code

 517X

Series

HR

Tooth type

TCI/tungsten carbide insert

 Connection

2 7/8  API REG PIN

Bearing

rubber sealed bearing

 Nozzle

 three jet nozzles

 Rotary Speed(rpm)

140~60

 Weight on Bit(KN/MM)

0.35~1.0

Application

water well,oil   well,HDD,exploration,etc

 Formation

Soft  formation with low compressive   strength and  high drillability such as mudstone,gypsum,salt,soft shale,soft limestone,etc.
