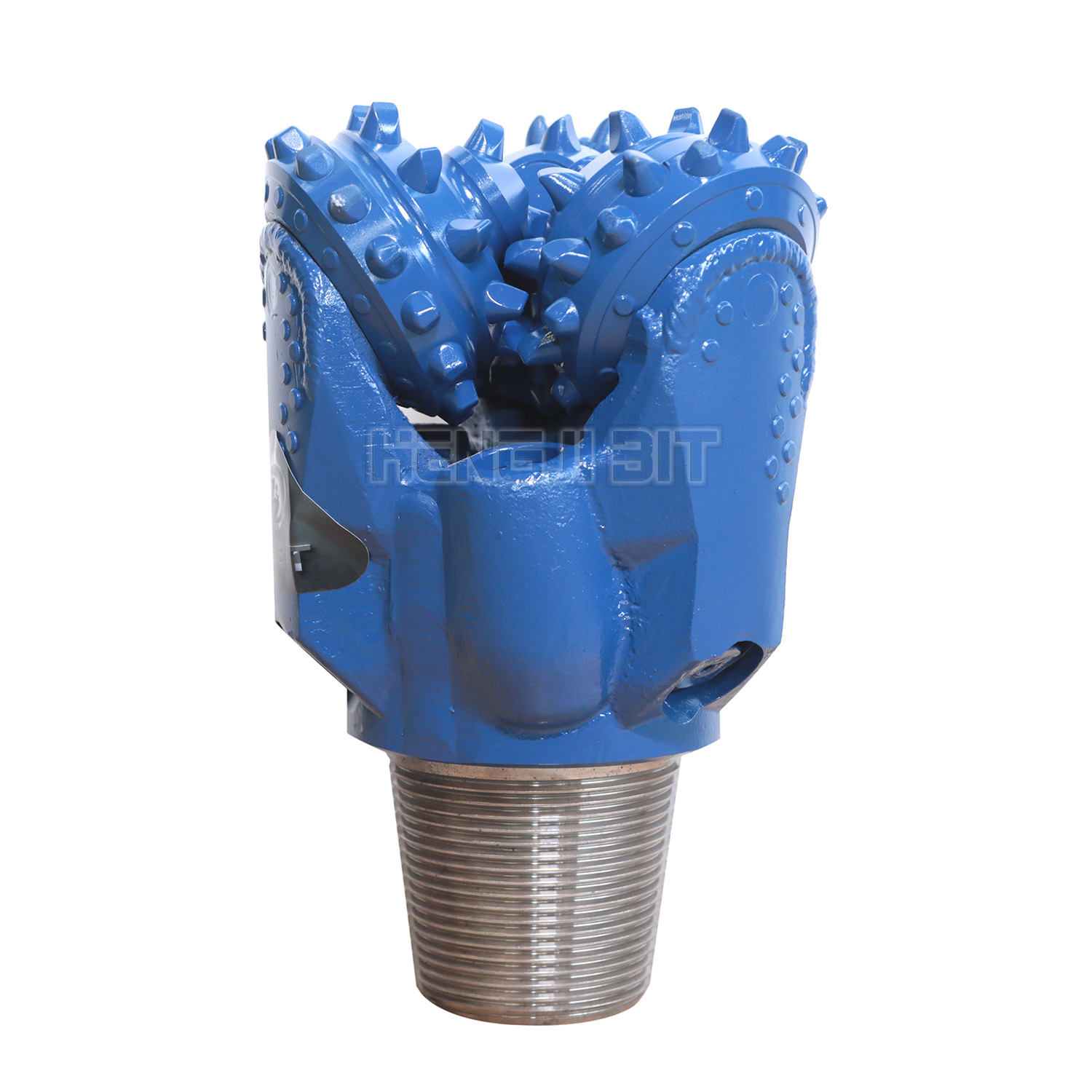

Designed for soft to very soft intervals, this IADC 437 TCI tricone converts torque into steady footage without the chatter that steals bit life. The journal sealed bearing keeps the cones tracking quietly; you can feel the smooth pull from the brake as cuttings evacuate through the three jets. Balanced TCI geometry “bites” without over-engaging, so sticky clays and salts release rather than balling up the face. The payoff is simple: fewer unplanned trips, cleaner gauge, and a predictable cost per meter across municipal water wells, trenchless crossings, and low-temperature geothermal holes.
Soft-formation authority: 437 layout targets low compressive strengths, turning rotary speed into clean chips and stable ROP.
Long-run bearing integrity: Journal + elastomer sealing protects lube, resists fines, and maintains cone alignment.
Hydraulic housekeeping: Three jets sweep the face to keep inserts clear in gumbo-prone returns.
Hole quality preserved: Gauge and shirttail protection reduce shoulder wear, helping tools downhole fit as planned.
Operator-friendly tuning: A clear RPM/WOB window means less guesswork and faster stabilization during the first stand.
Field voice: “ROP stayed flat through a sticky shale/salt mix and the hole cleaned easily—no mid-run swap.” — Water-well contractor, US Midwest.
| Item | Spec |
|---|---|
| Bit Size | 8 1/2" (≈215–215.9 mm) |
| IADC | 437 |
| Cutting Structure | TCI (tungsten carbide inserts) |
| Bearing System | Journal bearing, elastomer sealed |
| Connection | 4 1/2" API REG pin |
| Nozzles | 3 jets |
| Circulation | Mud |
| Protections | Gauge pads; shirttail hardfacing |
| Recommended RPM | ~70–150 rpm (formation dependent) |
| WOB Guidance | Factor 0.35–0.9 (field-tune per rig/ROP) |
| Target Formations | Clay, mudstone, chalk, gypsum, salt, soft limestone |
| Typical Applications | Water well, HDD, geothermal, oil & gas, exploration |
1) Formation & Applications
Built for clays, chalks, salts, and soft limestones. In municipal wells and HDD pilot holes, the bit tracks straight and protects gauge, minimizing reaming load. In geothermal, it holds ROP as temperature and mud properties shift through the run.
2) Cutting Structure & Bearings
TCI rows combine chisel/round profiles for controlled penetration and chip-breaking. Journal sealed bearings reduce runout and vibration versus open systems—useful where fines, silt, and sticky cuttings would otherwise punish rollers.
3) Operating Parameters
Use mid-range RPM to establish stable torque, then trim toward 70–150 rpm based on returns and differential pressure. Start WOB near the mid-factor, watch standpipe pressure and torque spikes, and step up only if chips remain intact and bearings run cool.
4) Connection & Nozzles
The 4 1/2" API REG pin fits common 8 1/2" strings and makes inventory simple. Three interchangeable jets support mud optimization—scale nozzle ID to balance ECD, bottom cleaning, and motor/drive preferences.
5) Protections & Durability
Gauge pads and shirttail protection shield the highest wear zones. Balanced insert exposure reduces edge chipping; even wear keeps the hole on size, lowering the risk of downstream tool hang-ups.
6) Compliance & Packaging
API-conforming threads and inspection routines, with export-ready wooden crating. Documentation, material certs, and dimensional reports available for QA and receiving checks.
7) Buying Considerations
Available new with flexible MOQs; retip/rebuild programs are common in the category for cost control. Check lead time against spud dates, confirm nozzle kit, and align RPM/WOB guidance with your rig envelope.
Predictable economics: The 437/TCI + journal-bearing recipe is a proven spec for soft formations, reducing variability on day-rate and municipal jobs.
Integration made easy: Standard API REG, straightforward hydraulics, and a broad formation window streamline fleet planning and on-site swaps.
B2B reliability: Formal QA, packing lists, and responsive tech support shorten procurement cycles and help field crews hit footage targets without surprises.
Q1: What formations is this bit best for?
Soft to very soft intervals—clays, mudstone, chalk, gypsum, salts, and soft limestones. Expect steady ROP with low vibration and clean evacuation.
Q2: How should I set RPM and WOB?
Establish at mid-range (e.g., ~110 rpm; mid-factor WOB), verify cuttings, torque, and differential pressure, then adjust within the 70–150 rpm / 0.35–0.9 factor window for life vs. speed.
Q3: Is the connection compatible with my string?
Yes—4 1/2" API REG is widely used at this diameter. Verify pin/box condition and apply the correct make-up torque per your rig spec.
Q4: What comes with the bit?
Export-grade wooden crating and standard docs. Jet sizes can be specified at order; material/inspection reports available upon request for QA traceability.
