Author: Site Editor Publish Time: 2025-07-23 Origin: Site
The pdc bit has changed drilling by making it faster and cheaper.
The U.S. Department of Energy says pdc bits can cut drilling time in half.
Pdc bits last longer and work better in hard rocks than old bits.
| Period | Milestone Description | Impact / Significance |
|---|---|---|
| 1970s | First pdc drill bits introduced | Started a new time in drilling technology |
| 2010 to 2020 | Market share grew from 35% to 60% | Showed fast growth in the drilling industry |
Engineers keep making pdc technology better. Knowing the history of the pdc bit helps people see how pdc technology keeps changing drilling.
PDC bits changed drilling by making it quicker, cheaper, and stronger, especially in tough rocks. Old drill bits had lots of problems like getting too hot, not removing chips well, and breaking easily, but PDC bits fixed these issues. Early PDC bits were expensive and wore out fast, but they got better and cheaper over time. Today, PDC bits use better materials, smart shapes, and new tech like 3D printing and AI to drill faster and last longer. The future for PDC bits is good because new ideas keep making them work better, cost less, and help drilling be safer and cleaner.
Before PDC bits, old drill bits had many problems. Engineers had trouble getting rid of cuttings. Cuttings would get stuck on the tool face and move around the drill bit cone. This wasted energy that should help with drilling. It also made it hard to control the tool face. Directional drilling was difficult because of this problem.
When cuttings built up, the bit got very hot. This heat damaged the bit and slowed down drilling. These problems made drill bits work poorly in many jobs.
Old drill bits also had weak materials and bad designs. Most bits used tungsten carbide or high-speed steel. These wore out fast when spinning quickly. They did not have special coatings like Polycrystalline Diamond or Titanium Aluminum Nitride. So, they could not handle heat or friction well. Bad flute shapes and tip angles made it hard to remove chips and cool the bit. Vibration and changes in tool shape made rough holes and less accurate drilling.
| Type of Limitation | Impact on Drill Bit Efficiency | Mitigation or Cause |
|---|---|---|
| Abrasive Wear | Slower drilling, more friction | Materials were not hard enough |
| Breakage | Delays and tool breaks | Wrong bit choice or weak materials |
| Heat Generation | Tool wore out, cutting edges bent | Materials and coatings could not handle heat |
| Friction | More heat and faster wear | No special coatings to lower friction |
| Tool Geometry Changes | Rough holes, less accuracy | Wear changed the tool shape |
| Vibration and Poor Chip Removal | Rougher holes, less efficient drilling | Flute and tip designs were not good |
All these problems made old drill bits slow, weak, and not very accurate.
The drilling industry needed better drill bits for many reasons. Old bits could not drill through hard rocks well. Drilling needed bits that lasted longer and drilled faster. This would save time and money. Changing bits often cost more and slowed down work.
Bad cuttings removal and high heat hurt bits and made them less useful.
People wanted cleaner and safer drilling, so new designs were needed.
Deeper and hotter wells needed bits that could survive tough places.
New drilling machines and computers needed bits that worked better and safer.
Mining, geothermal, and oil and gas all needed better drill bits. The industry knew it had to make bits stronger, last longer, and work faster. These needs led to the invention of PDC bits, which soon changed drilling in many fields.
The story of the pdc bit started with a big change in cutter technology. In 1971, General Electric made the first polycrystalline diamond compact cutter. This cutter mixed fake diamond crystals with a carbide base. It was much harder and stronger than old tools. GE showed this new cutter to drilling companies in 1972. They shared it with companies like Hughes Tool Company. In 1973, GE wrote a manual called "Compax® Diamond Blanks." It explained how these cutters could help oil and gas drilling.
Early tests began in 1973 on an Exxon well in Texas. The first pdc bits had problems like broken cutters and weak joints. GE and its partners tested more in Colorado and Utah. They changed the cutter design and bit technology. They also tried the new bits in mineral drilling, cutting through hard iron ore. These tests proved that polycrystalline diamond cutters could take the place of natural diamond bits in many jobs.
From 1974 to 1976, GE worked with customers to fix problems. They made the cutters bigger and stronger. In December 1976, GE started selling the Stratapax product line. This was the first time pdc cutters were used for oil and gas drilling. Other companies joined in, like Stratabit, Eastman Christensen, and Drilling & Service. They made new cutter shapes and better ways to attach cutters to the bit.
In the early years, cutter development moved fast. Companies like Valdiamant and DeBeers joined the market. They made new designs and thicker diamond tables for more strength. US Synthetic became a leader by making cutters with thick diamond layers. These lasted longer in the field. In the 1980s, research focused on taking cobalt out of the cutter. This made it work better in high heat. By the mid-1990s, chamfering technology was used. This made pdc cutters twice as strong against breaking.
Here is a table that shows important events and people in early pdc and cutter technology:
| Time Period | Key Contributors & Companies | Key Events and Innovations |
|---|---|---|
| 1971 | General Electric (GE) | Invented the PDC cutter. |
| 1973-1976 | GE | Early testing of PDC bits in Texas, Colorado, Utah; faced challenges like cutter failures and cleaning issues. |
| Dec 1976 | GE | Commercial introduction of Stratapax PDC cutters with improved designs. |
| Late 1970s | Stratabit, Drilling & Service, Eastman Christensen, others | Developed new cutter shapes and bit technology; pioneered chamfered cutters and non-planar interfaces. |
| 1979-1984 | Valdiamant (Valeron) | Developed first successful non-planar interface cutter (Claw Cutter). |
| 1981 | DeBeers Industrial Diamond Division | Introduced thicker diamond tables for improved toughness. |
| 1983 | US Synthetic | Commercialized tough, durable cutters with thick diamond tables. |
| 1980s | GE, Sumitomo, Hycalog | Researched cobalt removal for better thermal stability and wear resistance. |
| Mid-1990s | Industry-wide | Adopted chamfering technology, doubling fracture resistance. |
| 2000s onward | Various companies | PDC bits became dominant in North American drilling. |
The first commercial pdc drill bits came out in 1976. This changed how drilling companies worked. These bits used the new polycrystalline diamond compact cutters. This made them much tougher than old bits. The new pdc bit technology helped crews drill faster and better. It worked best in soft to medium rocks like shale, limestone, and sandstone.
After these bits came out, many things changed:
Drilling crews drilled three to five times faster than before.
The new bits had no moving parts, so they lasted longer. They needed less fixing. This saved money and made drilling smoother.
At first, pdc bits cost a lot. Only big oil and gas companies used them. As prices dropped, more companies started using them.
Some people did not want to switch from old bits. But the better results of pdc bits changed their minds.
Better cutter technology, bit stability, and hydraulics made pdc bits even more reliable.
Pdc bits were used in more than just oil and gas. Geothermal, mining, and construction companies started using them too.
Patents from the mid-1970s show the early designs and changes in pdc bit technology. Inventors like Short, Jr., Barr, and Hall made new cutter shapes and bit designs. Later patents, like those for leaching, made cutters last longer. These advances helped pdc bits become the main choice in drilling.
The history of pdc bits shows how new ideas in cutter and bit technology can change a whole industry. The journey from the first polycrystalline diamond cutters to today’s pdc bits shows why research, testing, and teamwork are important for solving hard drilling problems.
Early PDC drill bits had many problems. Making these bits was expensive. They needed special diamond materials and tricky engineering. Only big companies could pay for them. Smaller companies picked other bits because they cost less.
Substrate erosion hurt the cutters and made repairs cost more.
Sometimes, the diamond table came off the substrate. This made the bit weaker.
Cutters broke or chipped, especially in hard rocks.
Heat problems made the bits work badly in tough places.
Cleaning issues made the bits wear out faster and caused more problems.
A review showed two main ways PDC bits wore out. These were abrasion and impact. Lab tests helped engineers see how cutters broke. Researchers found that brittle breaks and sticky mud made cutters worse. Later, thicker diamond tables and new layers helped bits last longer and cost less.
At first, PDC bits cost a lot more than roller cone bits. But they drilled faster and lasted longer. Over time, people saw PDC bits could do the work of many roller cone bits. This meant fewer trips and less rig time. For example, BP Exploration in Colombia saved $419,000 with a new PDC bit. It drilled faster and needed fewer changes. Even though the bit was a small part of the total cost, better performance made PDC bits a smart pick for deep wells.
PDC bits had trouble in abrasive rocks at first. Hard rocks and mixed layers wore out cutters quickly. Impact and sticky mud made cutters break and work worse. Engineers used lab tests and field work to learn about these problems.
A table below shows the main wear problems:
| Wear Mechanism | Effect on Cutter Performance | Impact on Bit Performance |
|---|---|---|
| Abrasion | Fast cutter wear, loss of sharpness | Lower drilling speed |
| Impact | Cutter chipping and breakage | Unstable drilling, more trips |
| Adhesive (Mud-Pack) | Cutter clogging, heat buildup | Reduced bit life |
Engineers worked to make cutters and bits stronger. They used thicker diamond tables and better ways to attach them. These changes made cutters work better and made PDC bits more reliable in tough rocks. Because of this, bit performance got better. Operators could use PDC bits in more places.
PDC bit technology has changed because of better materials. Engineers now use synthetic diamonds made with heat and pressure. These diamonds are joined to tungsten carbide. This makes the cutters hard and tough. Bit bodies are made from strong steel or matrix materials. Matrix bodies are better for tough rocks and last longer.
Now, PDC cutters use nanomaterials. Nanomaterials help the bit last longer and handle heat. 3D printing lets engineers make bits with special shapes. This helps the bits work better and last longer. Each cutter is tested for strength and heat resistance before use.
Thermally stable polycrystalline diamond cutters last longer in hot wells. New ways to join the diamond and base make the bond stronger. This lowers the chance of cutter failure. These changes make PDC bits more reliable and save money.
Bit design has changed to fix old problems and drill better. Engineers made new diamond materials to make cutters stronger. They use new blade shapes and place cutters in smart ways. This helps the bit stay stable and get less damage.
Modern PDC bits have chisel and ridged cutters. These shapes help cut rock faster. Hybrid bits mix PDC and roller-cone parts. This makes them good for different rocks. Designers use 3D software to make better bits. Force balancing keeps the bit steady and lowers shaking.
A table below shows some important design changes:
| Design Feature | Benefit |
|---|---|
| Chisel-shaped cutters | Improved cutting efficiency |
| Hybrid PDC-roller cone bits | Versatility in complex formations |
| Depth-of-cut control | Smoother, more stable drilling |
| Enhanced gauge protection | Longer gauge life, less hole damage |
| Advanced hydraulics | Better cuttings removal, higher speed |
Engineers use sensors and AI to study how bits wear out. This helps them put cutters in the best spots. These new ideas help bits drill faster and last longer. Bit design keeps getting better and helps drilling improve.
Today, the drilling industry uses PDC bits for many jobs. Companies use them in oil and gas wells. They also use them in geothermal and deepwater drilling. PDC bits are popular because they work in many rocks. They last longer than older bits. Their strong cutters and smart designs help crews drill faster. This also saves money.
PDC bits made drilling up to 173% faster in Middle East gas wells.
In Eagle Ford shale, PDC bits made drilling 40% quicker.
Wolfcamp shale projects finished 36% faster and drilled 25% faster.
Now, PDC bits are over 60% of the drilling market.
These bits need fewer changes, so tripping time drops by 20%.
They work in sandstone, carbonate rocks, and geothermal wells.
These improvements help companies save money and work better.

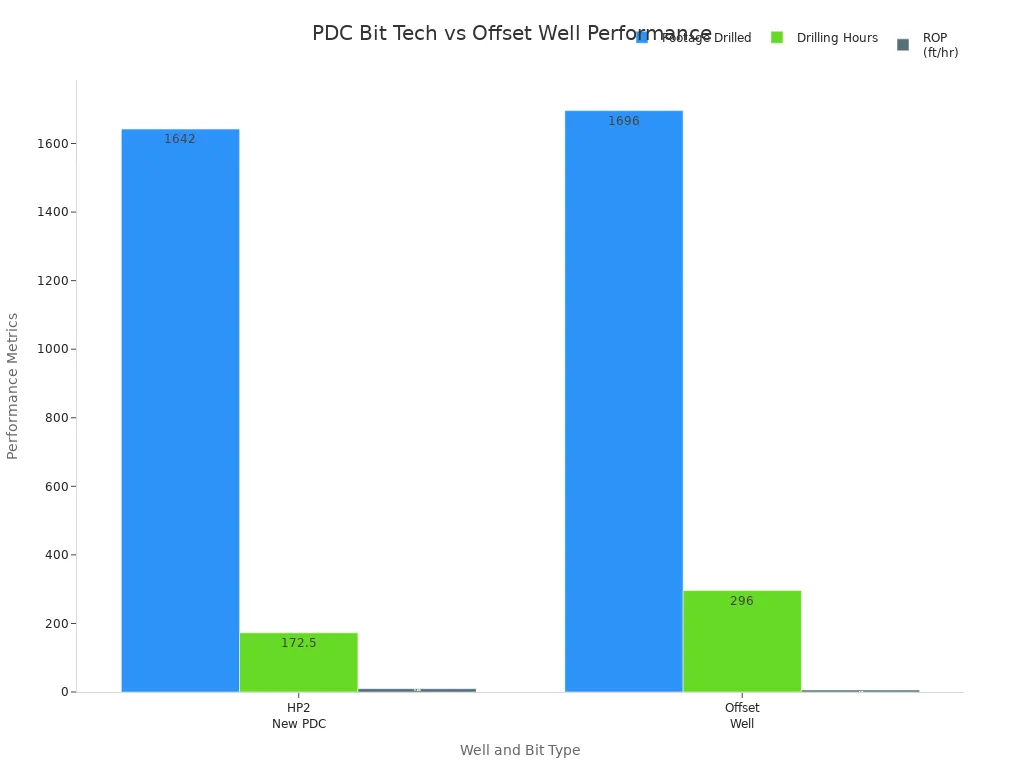

New PDC technology helps with hard rocks. Companies use new cutter materials and better cooling. They also use hybrid bit designs. Cool Edge technology uses fast fluid jets to cool each cutter. This cools cutters by up to 45%. It helps bits last longer and drill faster. The system also removes cuttings. This keeps the bit clean and helps it work better.
| Technology / Company | Key Features | Drilling Outcome Improvements |
|---|---|---|
| Halliburton MegaForce | SelectCutter PDC, force balancing, micro-nozzles | 20% higher speed, 31% more footage, better durability |
| NOV HeliosEdge & HeliosImpact | Thermal resistance, impact-resistant cutters, efficient weight transfer | 30% faster drilling, 45% better impact resistance, longer life |
| Smith Bits Spear | Taller blades, ONYX cutters, improved cuttings flow | Cleaner cutters, higher efficiency, global success |
| Baker Hughes Kymera Hybrid | PDC and roller cone mix, steel body, more junk-slot volume | 290% higher speed, fewer bit changes, strong in tough rocks |
Cool Edge technology also helps the environment. It means fewer bits are needed and less pollution. These changes save money and help the planet.
Research is making PDC bits even better. Experts use new materials like thermally stable polycrystalline diamond and nanomaterials. These help bits last longer and handle heat. 3D printing lets engineers make special bit shapes. This gives more control and better results. Smart drilling uses sensors, real-time data, and AI. These tools help crews know when to fix bits and drill better.
Fengsu Drilling Company uses these new ideas in oil, coal, and water wells. Hybrid bits mix PDC and roller cone parts. This helps in tricky rocks.
| Aspect | Details |
|---|---|
| Forecast Period | 2025 - 2034 |
| Market Size (2024) | USD 4.61 Billion |
| CAGR | 3.7% |
| Market Size (2034) | USD 6.63 Billion |
| Growth Drivers | Global oil & gas demand, tech advancements, AI & digital tech |
| Key Market Segments | Matrix body bits expected to lead |
| Regional Highlights | North America leads, Middle East & Africa growing |
| Opportunities | Smart bit development, regional expansion |
The future will bring smarter bits, stronger materials, and new designs. These changes will help meet energy needs and make drilling better for many uses.
PDC bits have changed drilling by making it stronger and faster in many jobs. Over time, new ideas helped fix old problems. Early changes made the bits last longer. Later, hybrid designs and computer models helped drill faster and stop less. Today, experts keep finding better materials and ways to make PDC bits. These bits are now very important for getting oil, gas, and heat from the earth. The drilling business keeps changing, so learning about new tools is very important.
PDC means Polycrystalline Diamond Compact. Engineers use it to make drill bit cutters. PDC cutters mix fake diamond and tungsten carbide. This mix makes the bit strong and helps it last a long time.
PDC bits drill holes faster than old bits. They also last longer in many kinds of rock. Companies save money because crews change bits less. These bits help finish drilling sooner and keep workers safer.
PDC bits can wear out fast in very hard rocks. High heat can hurt the cutters. Engineers keep working to make better materials and designs to fix these problems.
New materials, 3D printing, and smart sensors help PDC bits last longer. These tools also help them drill faster. Companies use AI to check how bits wear out and make better designs. These new ideas make drilling safer and help crews work better.
