17 1/2′′ 444.5mm IADC537G Tricone Drill Bit Drilling Water Well Bit

  • 1 Piece
  • Tianjin, China
  • 500
  • L/C, T/T, D/P, Western Union, Paypal
  • Customized
  • API
  • Center Drill Bit
  • Tungsten Carbide
  • Well Drilling
  • New
Availability:
Quantity:
Inquire Add to Basket

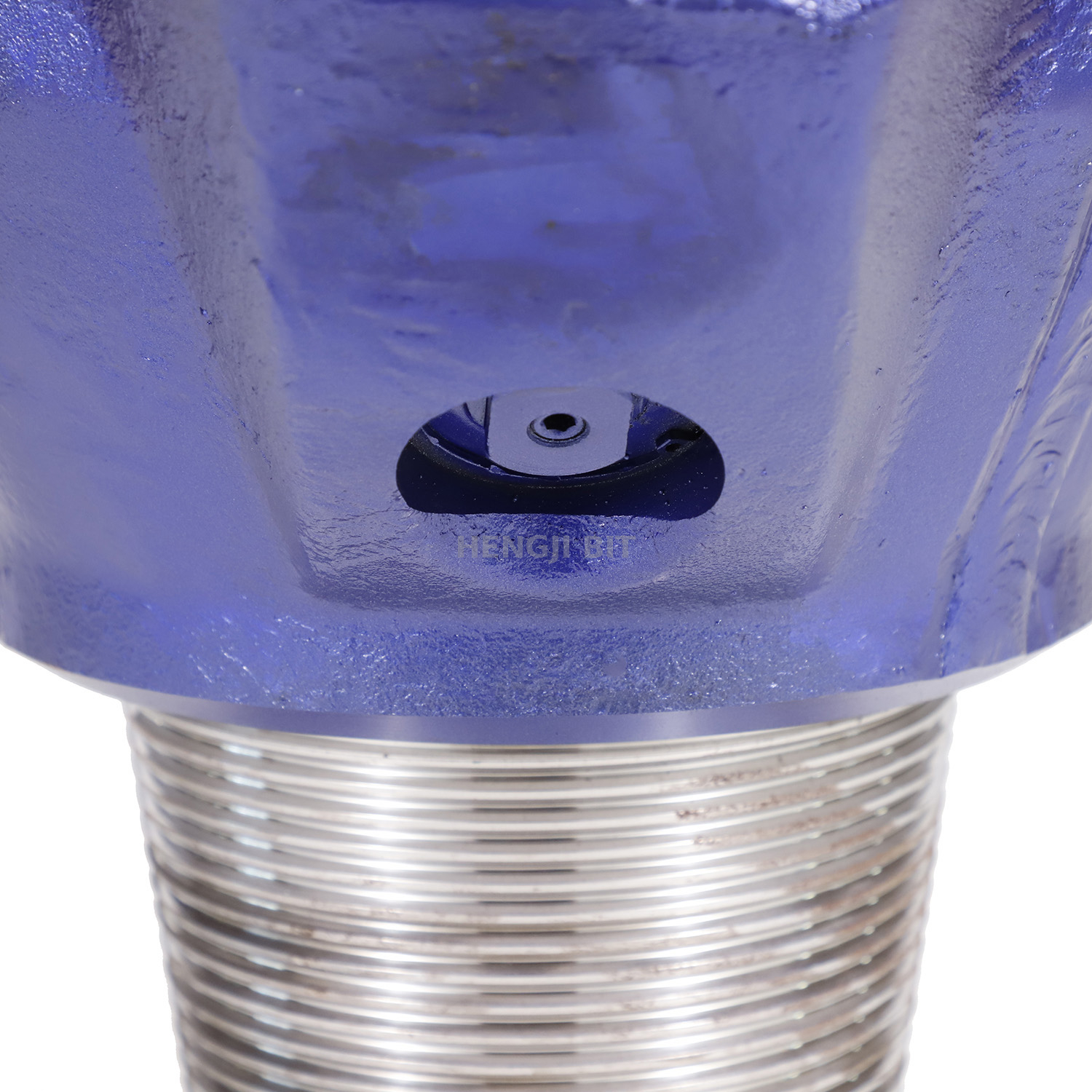

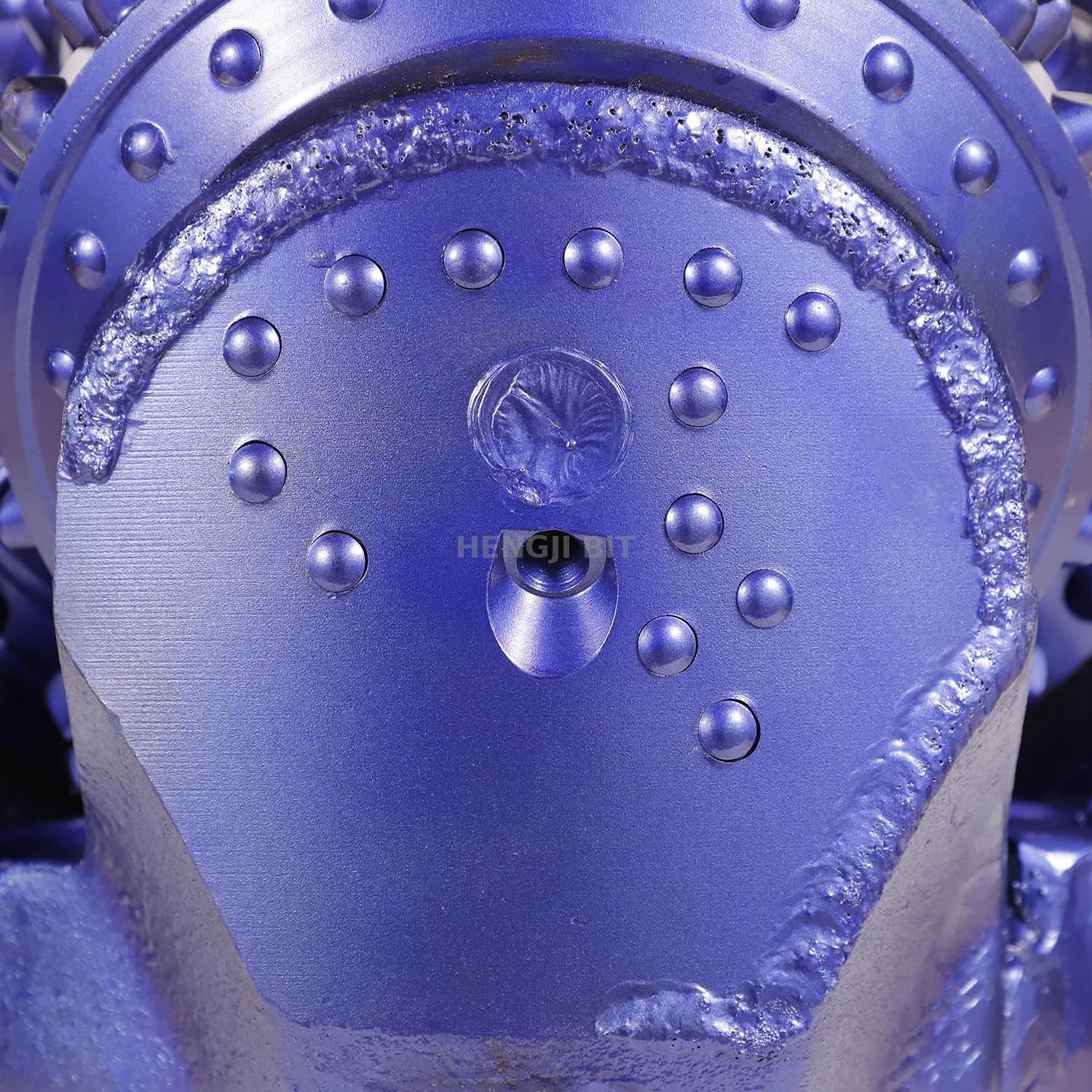

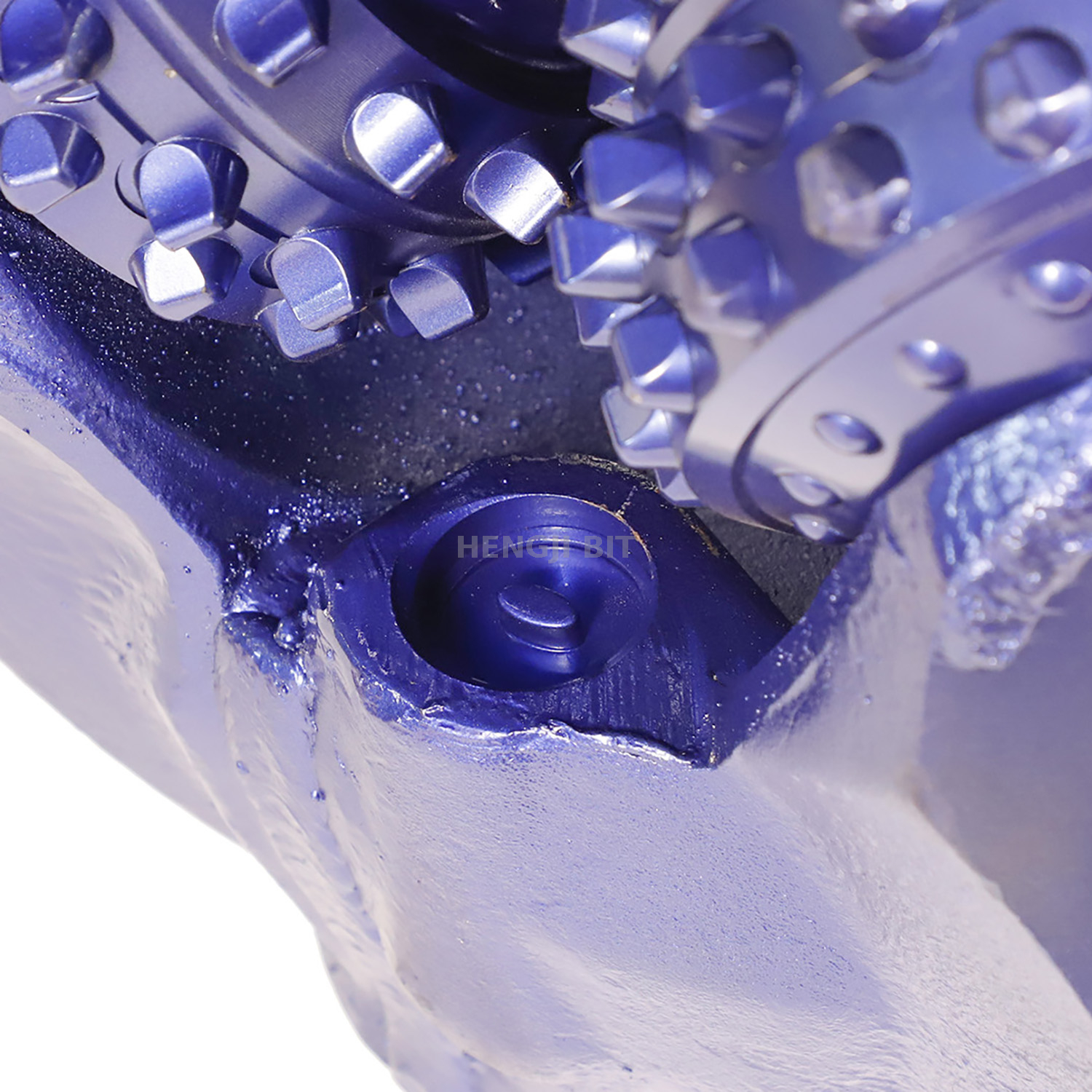

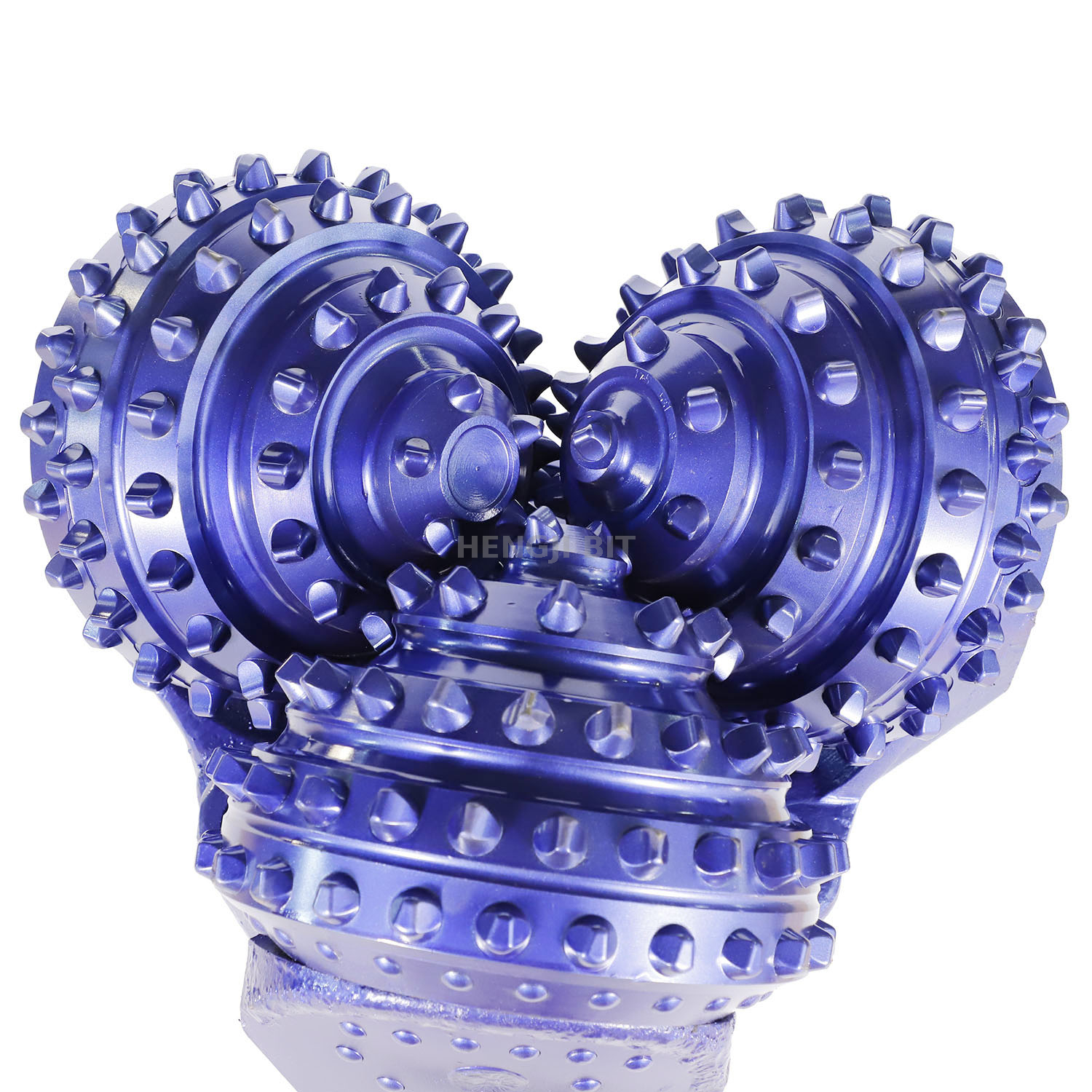

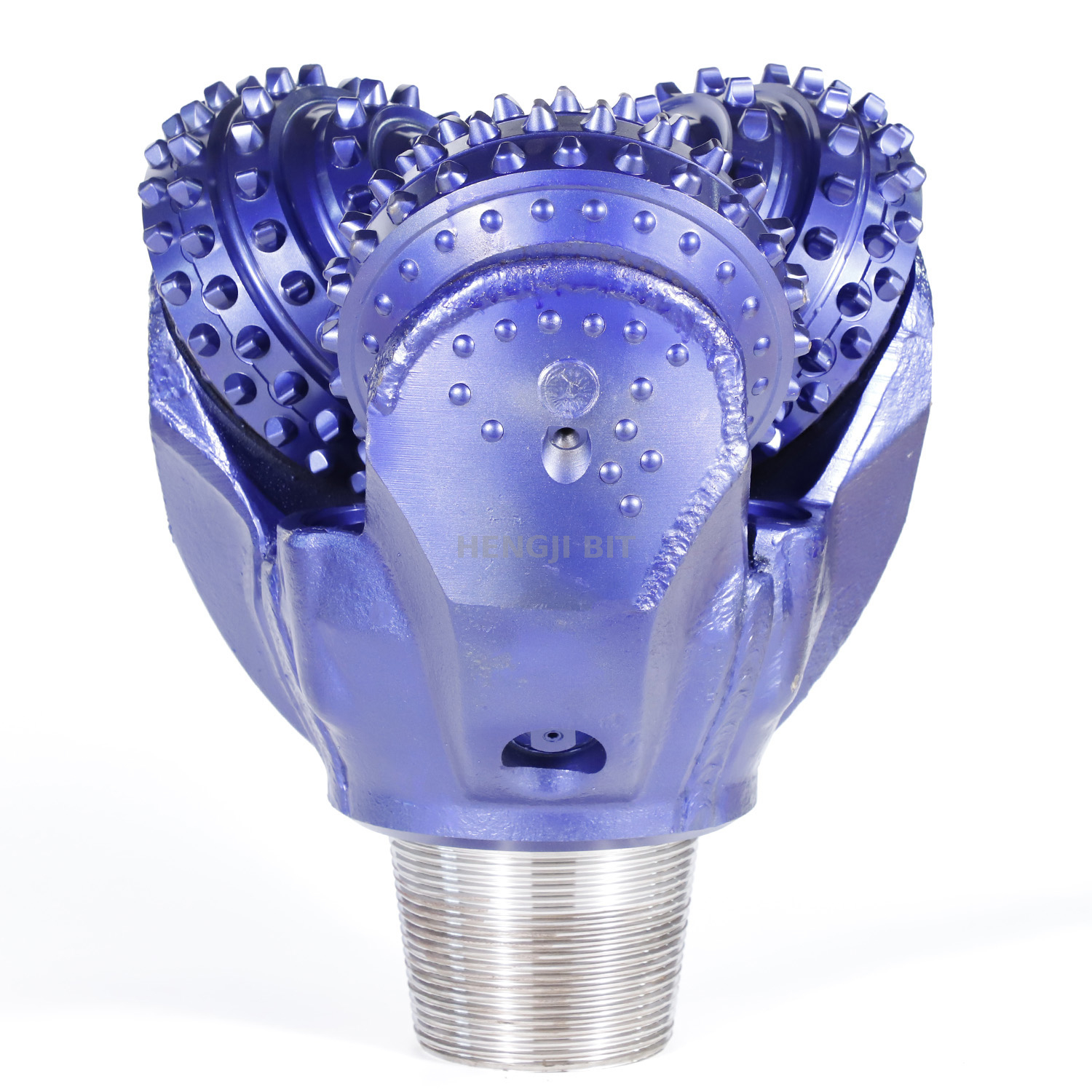

17 1/2 537G tricone TCI drill bit:

17.5 537 tricone drill bit


Basical Specification
Bit Size 17 1/2'',444.5mm
IADC Code:  537G
Thread Connection 7 5/8 API REG PIN
Series HR series rubber sealed bearing
Nozzle Qty 3NZ
Weight 260KG
Operating Parameters
WOB(kN/mm) 0.45-1.0
RPM(r/min) 120-50
Formations Soft to medium formation
Bit Size Bit Type
in mm
31/2 88.9 HR537 HR637







45/8  117.5 HR117 HR115 HR537 HR637 HR737




43/4 120.7 HR117 HR115 HR537 HR637 HR737




57/8 149.2 HR217 HR537 HR547 HR637





6 152.4 HR117 HR217 HR237 HR517 HR547 HR637 HR737


61/4 158.8 HR127 HR237 HR517 HR527 HR547 HR637 HR737 HR837

61/2 165.1 HR127 HR217 HR517 HR537 HR547 HR637 HR737 HR837

63/4 171.5 HR117 HR447 HR537 HR547 HR617 HR627 HR637 HR737 HR837
71/2 190.5 HR127 HR217 HR517 HR517 HR527 HR527 HR617


77/8 200 HR177 HR437 HR517 HR527 HR537 HR547 HR547 HR617 HR627 HR637
83/8 212.7 HR217 HR527 HR537 HR617 HR627 HR637 HR737 HR837 HR617 HR627
81/2 215.9 HR117 HR127 HR137 HR217 HR247 HR437 HR447 HR517 HR527 HR537
HE547 HR617 HR627 HR637 HR737 HR837



83/4 222.3 HE116 HR437 HR517 HR537 HR627




91/2 241.3 HR117 HR127 HR417 HR437 HR517 HR527 HR537 HR547 HR617
95/8 244.5 HR117 HR127 HR137 HR217 HR437 HR517 HR527


97/8 250.8 HR117 HR127 HR137 HR217 HR417 HR437 HR517 HR527

105/8 269.9 HR127 HR217 HR437 HR517 HR547




115/8 295.3 HR117 HR127 HR137 HR217 HR147 HR517 HR537 HR547

121/4 311.2 HR117 HR127 HR137 HR417 HR437 HR517 HR527 HR537

HR547 HR617 HR627 HR637





135/8 346.1 HR117 HR127 HR235 HR437 HR517 HR527 HR537 HR637

133/4 349.3 HR437 HR517 HR537 HR617 HR627 HR637 HR737 HR117 HR217
143/4 374.7 HR117 HR127 HR137 HR517 HR527 HR537 HR547 HR617 HR637
151/2 393.7 HR127 HR217 HR517 HR527 HR537 HR547 HR617 HR637 HR737 HR837
16 406.4 HR117 HR127 HR127 HR517 HR527 HR537 HR547 HR617 HR637 HR737
171/2 444.5 HR117 HR127 HR137 HR437 HR517 HR527 HR537 HR547 HR637 HR737
18 457.2 HR117 HR217 HR237 HR437 HR517 HR527 HR537 HR547 HR637 HR737
19 482.6 HR117 HR217 HR237 HR437 HR517 HR527 HR537 HR547 HR637 HR737
20 508.0 HR117 HR217 HR237 HR437 HR517 HR527 HR537 HR547 HR637 HR737
22 558.8 HR117 HR217 HR237 HR437 HR517 HR527 HR537 HR547 HR637 HR737
24 609.6 HR117 HR217 HR237 HR437 HR517 HR527 HR537 HR547 HR637 HR737
26 914.4 HR117 HR217 HR237 HR437 HR517 HR527 HR537 HR547 HR637 HR737



IADC WOB RPM Applicable Formations
(KN/MM) (r/min)
(Bit Dia)
116  117 0.35~0.8 150~80 Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
136  137 0.35~1.0 120~60 Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft limestone.medium soft sandstone soft formation with harder nterbeds,ect.
216  217 0.4~1.0 100~60 Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect.
246  247 0.4~1.0 80~50 Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
417  437 0.35~0.9 150~70 Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc.
447
517  527 0.35~1.0 140~60 Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect.
537  547 0.45~1.0 120~50 Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect.
617  627 0.45~1.1 90~50 Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect.
637 0.5~1.2 80~40 Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect.
