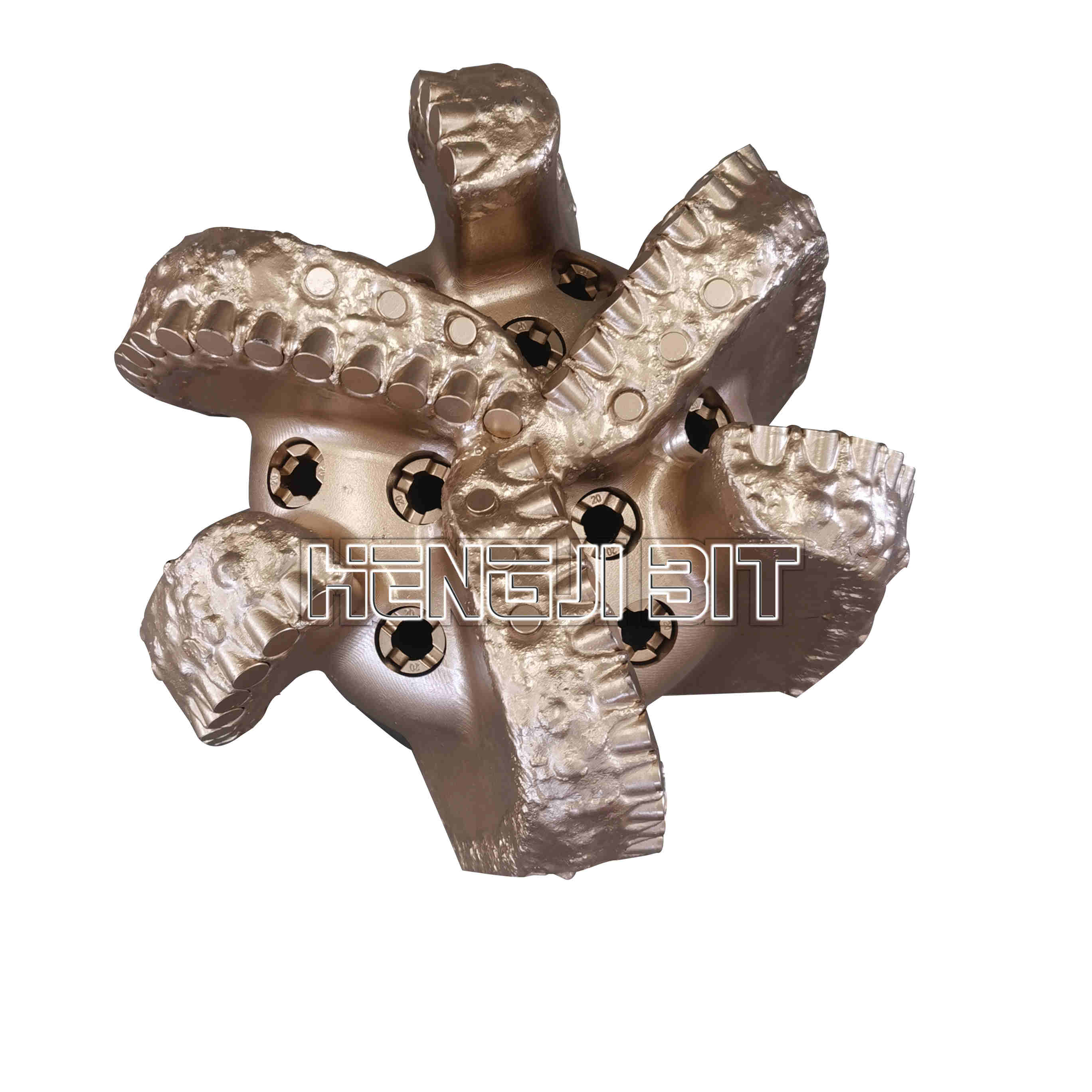

The 11 5/8'' PDC Bit Steel Body from Hengji is designed for efficient drilling. It is engineered with a 16mm primary cutter size and features a six-blade configuration. The bit operates with API REG 6 5/8'' pin connections. This drill bit supports various operating parameters and delivers consistent performance.
The bit includes eight nozzles for improved fluid flow during operations. The gauge length measures between 3 and 3.5 inches, ensuring stability in drilling. It supports a wide RPM range from 60 to 300. The weight on bit (WOB) ranges from 35 to 130 KN, allowing flexibility for different formations.
This PDC bit is built for high efficiency and durability. It is suitable for water well drilling and similar applications. The design helps improve speed and reduce costs, meeting the demands of modern drilling projects.
HENGJI PDC BIT Specifications | |
Bit Size | 11 5/8 |
IADC CODE | S616 |
Primary Cutter Size | 16mm |
Qty of Blades | 6 |
API Pin Connection | 6 5/8 API REG |
Nozzle Qty | 8NZ |
Gauge Length | 3-3.5 |
Operating Parameters | |
RPM(r/min) | 60-300 |
WOB(KN) | 35-130 |
Flow Rate(lps) | 8-29 |
Provides wear resistance, impact resistance, and thermal stability.

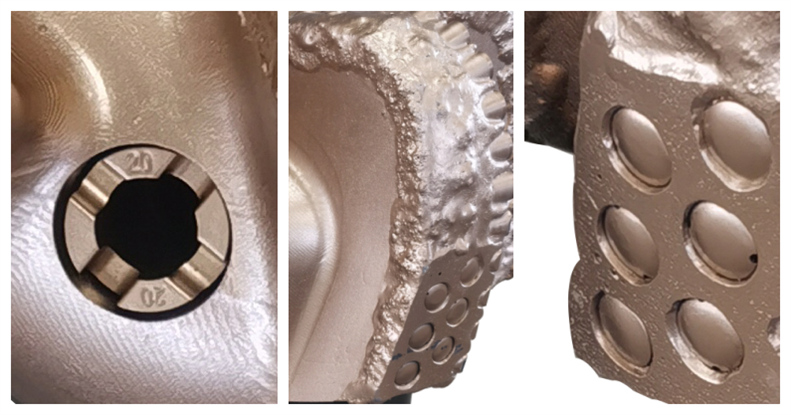

Arc-surface PDC protection enhances gauge abrasion resistance.
Improves radial vibration resistance compared to TSP protection.
Cutter depth is calculated for efficient formation penetration.
Design is based on extensive field experience.
Six-blade configuration increases cutting efficiency.
Includes eight nozzles to enhance hydraulic performance.
Gauge length of 3–3.5 inches ensures stability during drilling.
Operates at 60–300 RPM for flexibility in various conditions.
Handles weight on bit (WOB) from 35–130 KN.
Supports flow rates between 8–29 lps for smooth operations.
Built with strong materials for long service life.
Consistent performance across different drilling conditions.
Optimized blade and cutter design reduces drilling time.
Lowers operational costs during projects.
Works efficiently at RPM ranges of 60–300.
Handles weight on bit (WOB) between 35–130 KN.
Adapts to various geological formations with ease.
Effectively breaks rock formations during drilling.
Reduces costs while maintaining high drilling efficiency.
Large-diameter design suits high-output requirements at well bottoms.
Facilitates extraction for residential and agricultural uses.
Adapts to varying groundwater levels in diverse locations.
Ensures efficient drilling and water flow management.
The bit has 6 blades and 8 nozzles for optimal cutting and fluid flow.
Yes, Hengji offers customization options to meet specific project requirements.
It is widely used in water well drilling and groundwater extraction.
