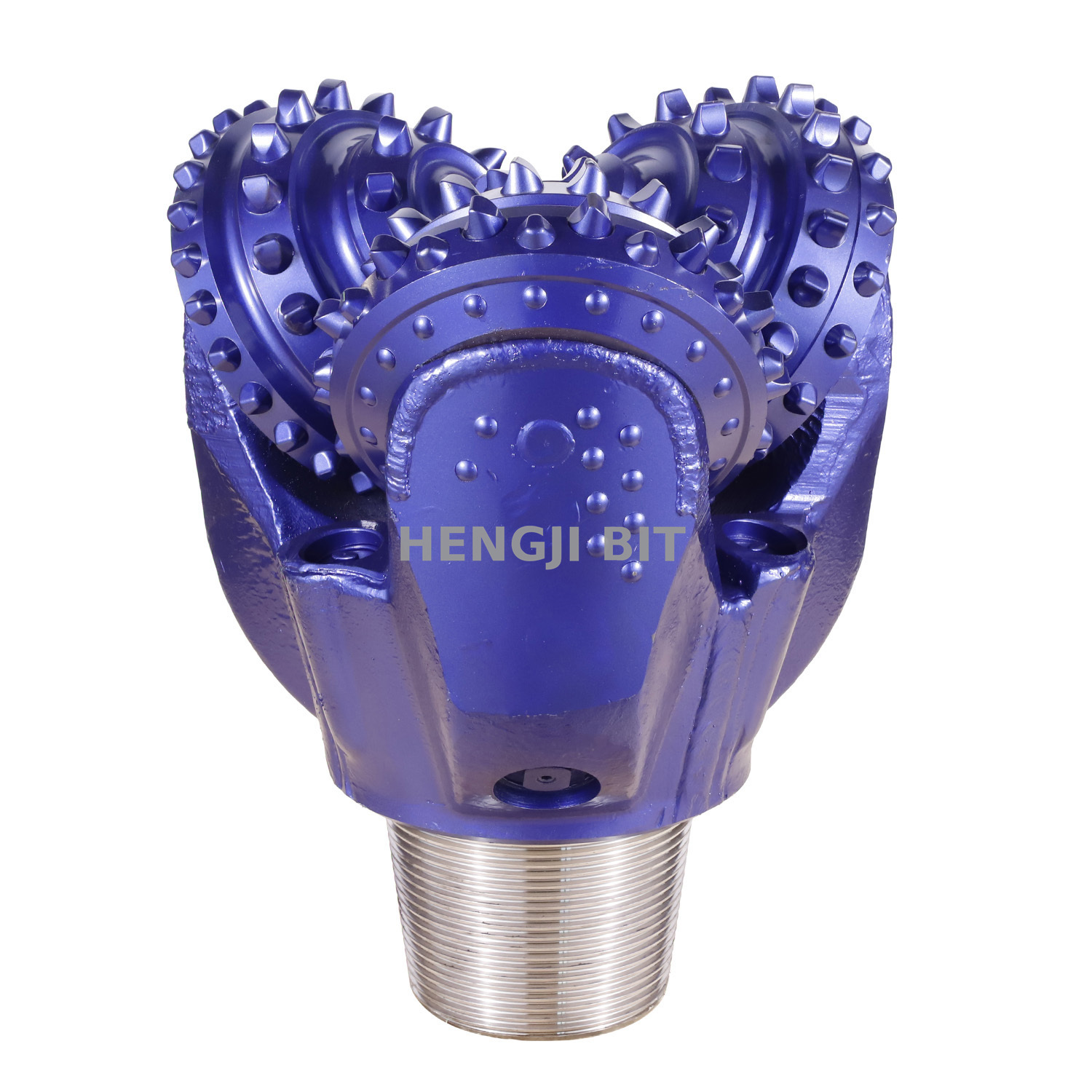

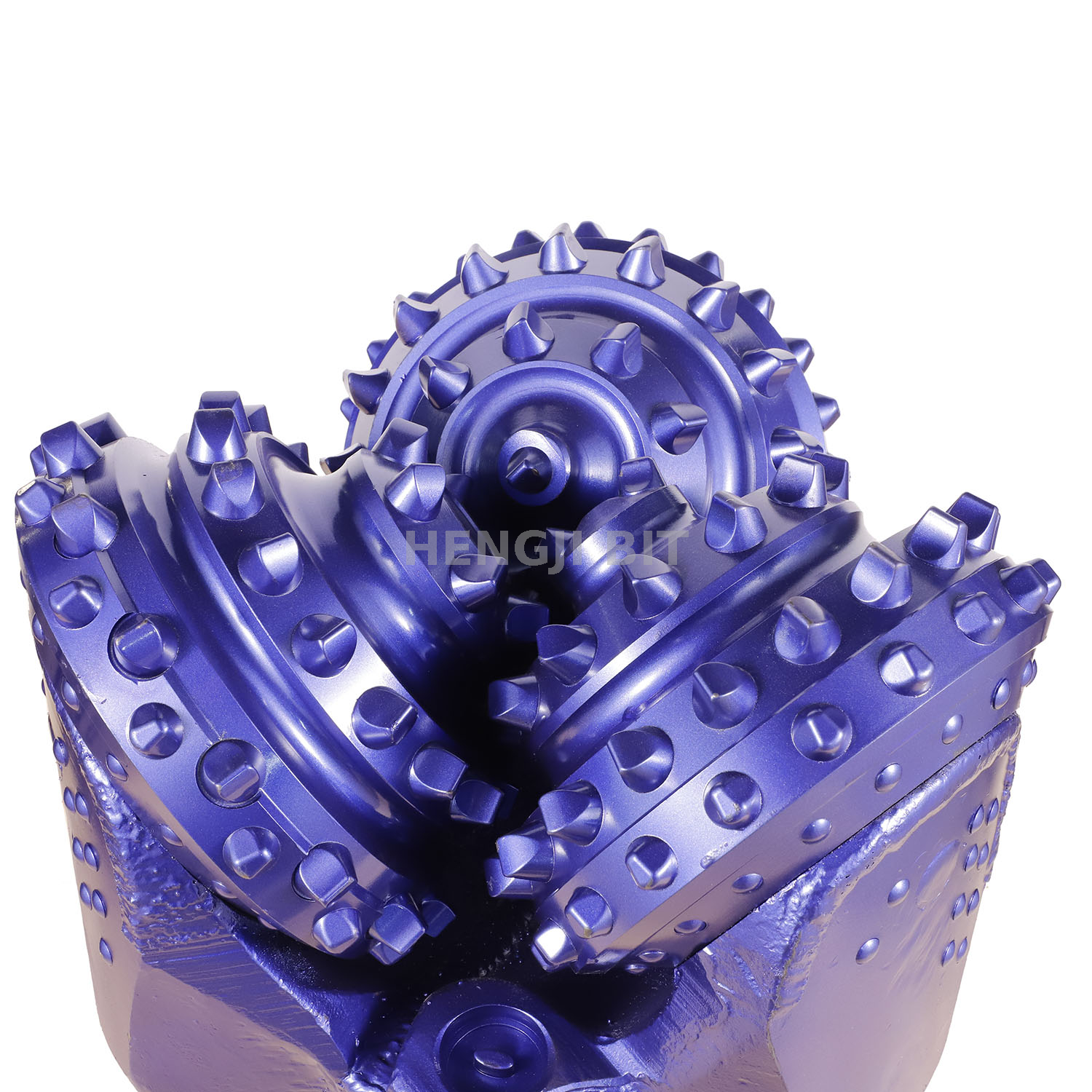

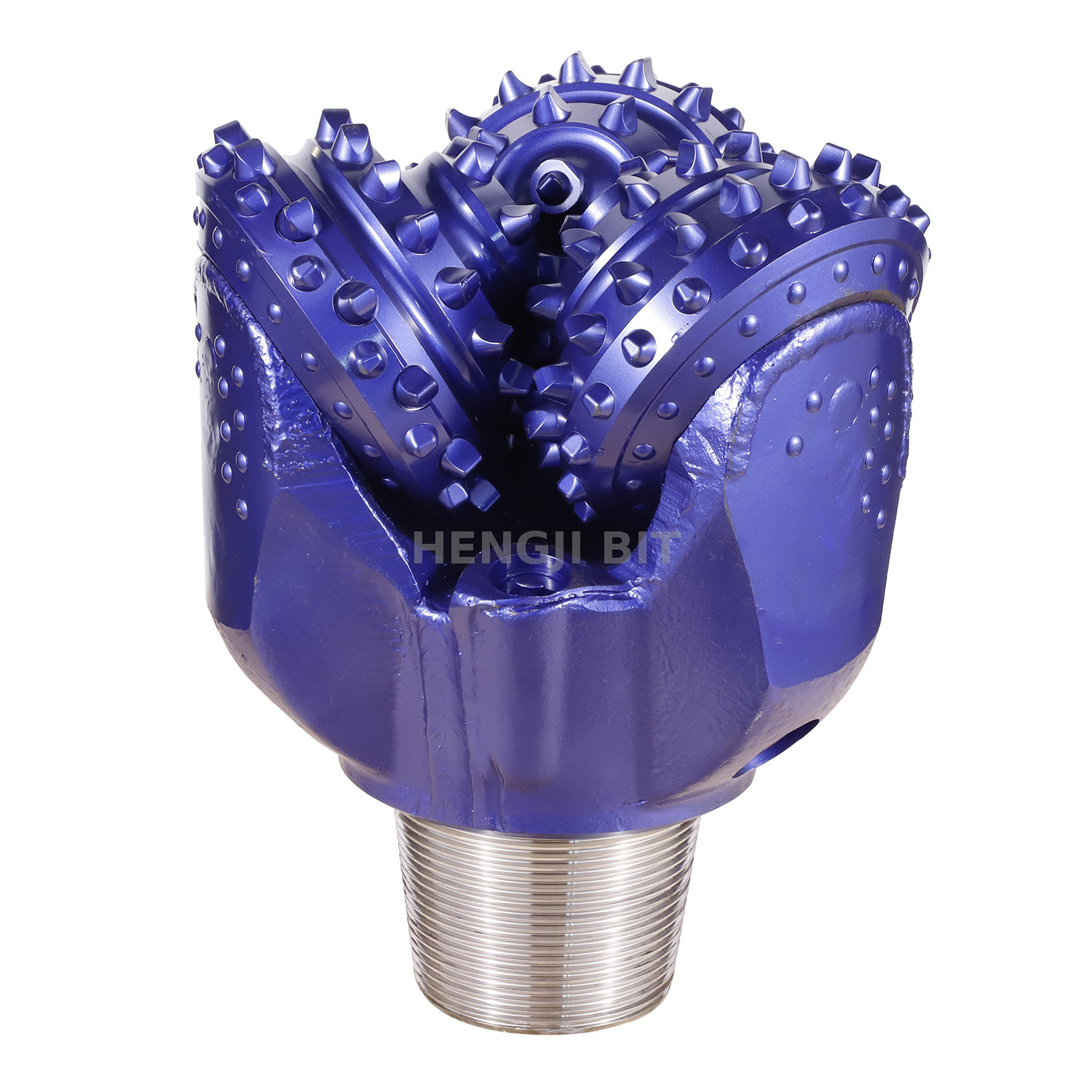

HR Series Rubber Sealed Bearing Bits
Journal bearing.Hardfaced head bearing surface.inner hole of cone is silver-plated.The load capacity and seizure resistance of the bearing is greatly improved.0 ring seal is made of the more wear resistance high saturated buna-N with the increased seal section and precisely designed sealing flflange in the cone sealing area increased the reliability of the seal.
HENGJI BIT SPECIFICATION | |
Bit Size | 16''(406.4mm) |
IADC Code | 517 |
Series | HR |
Tooth type | TCI/tungsten carbide insert |
Connection | 7 5/8 API REG PIN |
Bearing | rubber sealed bearing |
Nozzle | three jet nozzles |
Rotary Speed(rpm) | 140~60 |
Weight on Bit(KN/MM) | 0.35~1.0 |
Application | water well,oil well,HDD,exploration,etc |
Formation | Soft formation with low compressive strength and high drillability such as mudstone,gypsum,salt,soft shale,soft limestone,etc. |
Packaging |
Wood Box Fumigation Tray if necessary Other special package can be applied according to customer's need |
Delivery |
Prepared to deliver within 1 week, if in stock Depends on order quantity, when out of stock Transportation:By sea or air |
Regular Models
PDC 3 7/8''
PDC 4 5/8''
PDC 4 3/4''
PDC 5 1/2''
Tricone 5 7/8''537
Tricone 14 3/4'' 117
Tricone 12 1/4'' 537
Tricone 10 5/8'' 537
Tricone 20'' 637
Tricone 15 1/2'' 517
Tricone 14 3/4'' 637
Tricone 12 1/4'' 637
Tricone 12 1/4'' 437
Tricone 8 3/4'' 617
Tricone 12 1/4'' 537
Tricone 9 7/8'' 517
Drag bit 9 7/8''
Drag bit 15''
Drag bit 8 1/2''
Drag bit 7 1/2''
Tricone 22''517
Tricone 20'' 127
Tricone 17 1/2'' 217
Tricone 17 1/2'' 637
Hole opener 18''
Hole opener 14''
Hole opener 16''
Hole opener 12 1/4''
