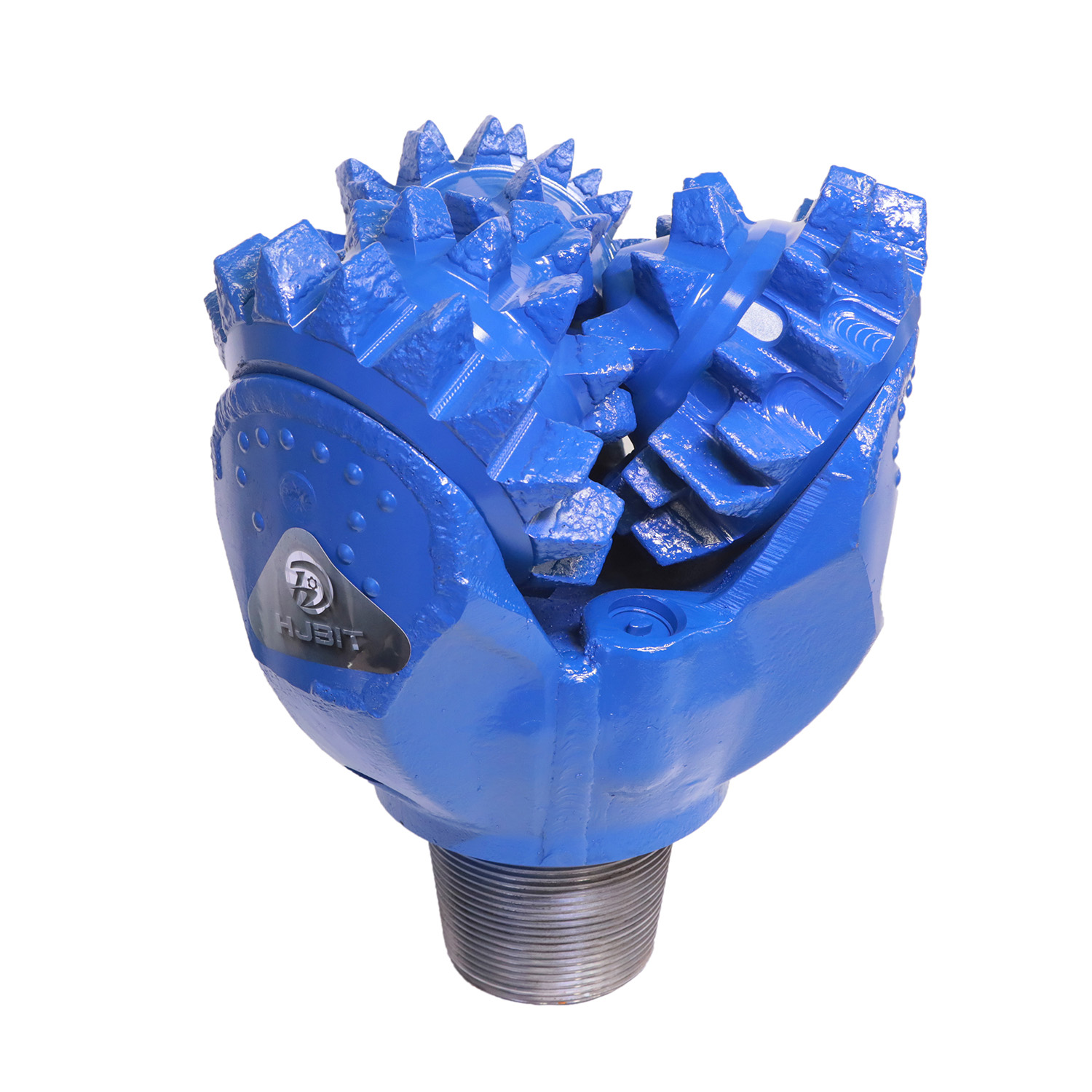

17 1/2'' 444mm IADC 117 Steel Tooth Milled Tooth Tricone Bit Geothermal Well Drililng Tools
HJ Bit is a trusted name in the drilling industry, specializing in the design and manufacture of durable and high-performance drilling tools. The 17 1/2'' 444mm IADC 117 Steel Tooth Milled Tooth Tricone Bit is one of our flagship products, tailored for use in geothermal and water well drilling applications. Built to withstand soft to medium formations, it ensures fast and efficient drilling operations while maintaining long-term reliability and cost-effectiveness.
The 17 1/2'' IADC 117 Steel Tooth Milled Tooth Tricone Bit from HJ Bit is engineered for high performance in geothermal, oil, and water well drilling applications. With a diameter of 444mm, this tricone bit is designed to handle extremely soft to medium formations with varying hardness. Whether you're drilling in clay, mudstone, soft shale, or anhydrite, this bit's robust steel tooth design and optimized geometry ensure excellent penetration rates and long service life.

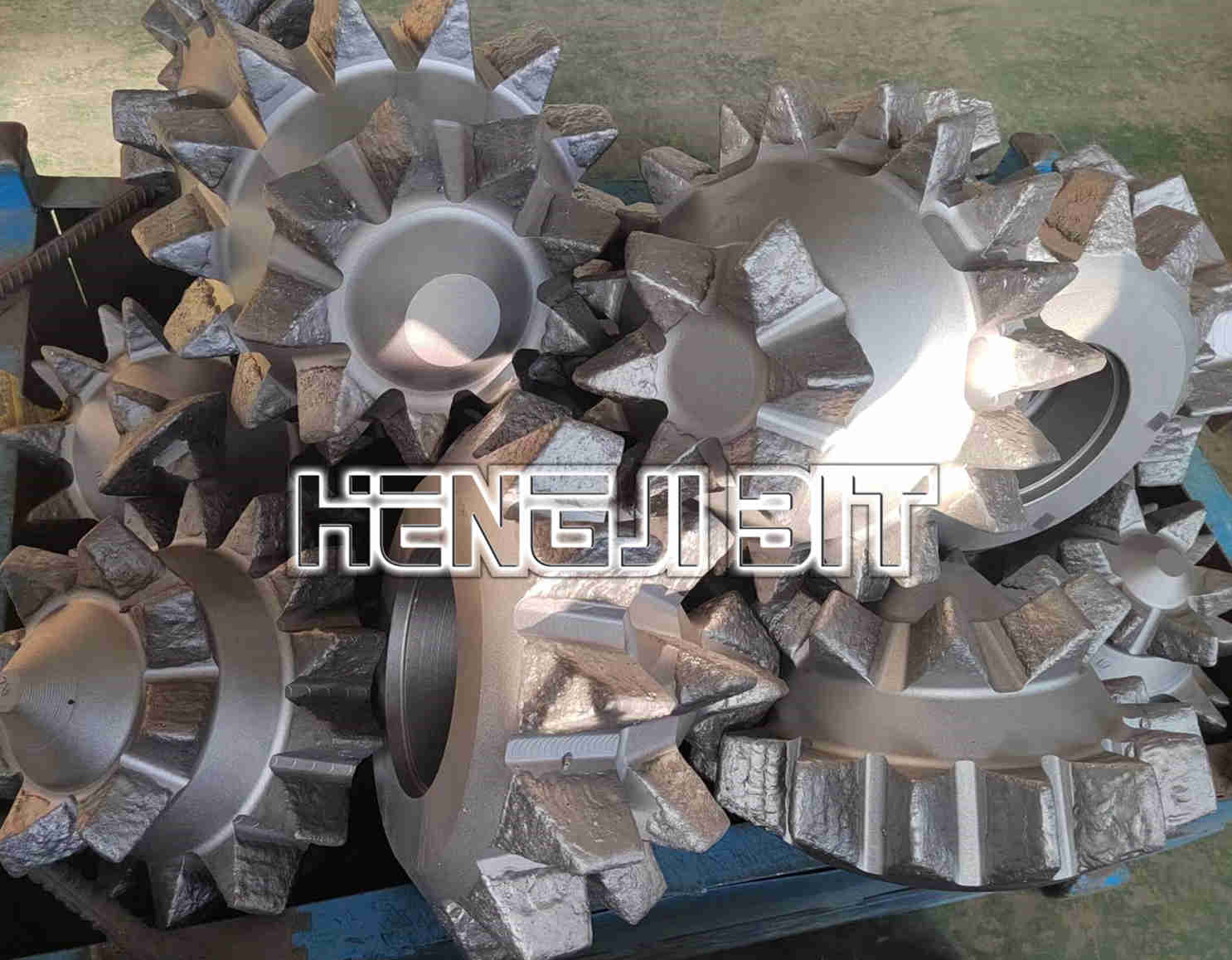

The bit is equipped with high-quality milled steel teeth that are ideal for soft to medium formations, providing efficient cutting and extended durability. It also features elastomer-sealed bearings, which help prevent contaminants from entering the bearing area, reducing the likelihood of failure and ensuring smooth operation even in challenging environments.
For added protection, the bit is designed with gauge protection to reduce wear and improve the stability of the bit during operations, and three jet nozzles ensure effective fluid circulation, optimizing cleaning and cooling during the drilling process. With these advanced features, the HJ Bit IADC 117 Steel Tooth Tricone Bit is an essential tool for tough and demanding drilling projects.
Steel tooth drills are suitable for extremely soft formations with low compressive strength and high drillability such as clay, mudstone, chalk, etc. They are also suitable for medium strata with high compressive strength, such as soft shale, anhydrite, medium soft limestone, medium soft sandstone. Medium stratum with a hard interlayer.
HENGJI BIT SPEC
IADC CODE 117
Diameter
17 1/2"(444.5mm)
Tooth Type
Milled tooth/steel tooth
Bearing Type
Elastomer sealed bearing
Circulation Type
Mud fluid
Thread Connection
7 5/8 API REG PIN
Nozzle
three jet nozzles
Gauge Protection
Available
Shirttail Protection
Available
Operating Parameters
RPM(r/min)
180~60
WOB(KN)
0.3~0.75
Formations
Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc
Application
water well drilling,oil &gas well drilling ,HDD,exploration,geothermal well drilling,drilling projects,etc
Product Features
Tooth Type: Milled steel teeth, designed to perform effectively in soft to medium formations with low to medium compressive strength.
Bearing Type: Elastomer-sealed bearing system that enhances reliability and extends the bit’s lifespan, preventing contamination and reducing wear.
Gauge Protection: Tungsten carbide inserts are added to the gauge area to reduce wear from abrasive formations and increase the bit's life.
Shirttail Protection: Ensures the stability of the bit during drilling, reducing excessive wear and tear.
Fluid Circulation: Three jet nozzles provide efficient cooling and cleaning, improving the bit's overall performance and reducing overheating risks.
Operating Parameters: Optimized for use with RPM between 180–60 and WOB (Weight on Bit) between 0.3–0.75 KN for high drilling efficiency.
Thread Connection: 7 5/8 API REG PIN, offering a stable and secure connection to the drilling string for consistent performance.
Product Advantages
High Adaptability: The steel tooth design makes it suitable for drilling through soft to medium formations, with high drillability and performance in low-compressive strength environments.
Durability and Longevity: The use of high-quality steel teeth and elastomer-sealed bearings reduces wear and ensures long-lasting performance, even in harsh drilling conditions.
Reduced Downtime: Features like gauge and shirttail protection minimize bit wear, reducing downtime and maintenance costs.
Efficient Drilling: Optimized for high penetration rates (ROP), which accelerates drilling progress and lowers operational costs.
Versatile Applications: Performs well across a wide range of drilling environments, including water well drilling, geothermal well drilling, and oil & gas exploration.
Product Applications
Geothermal Drilling: Ideal for drilling in geothermal environments where extreme temperatures and tough formations can be encountered.
Water Well Drilling: Perfect for drilling through soft to medium formations typically found in water well projects.
Oil & Gas Well Drilling: Capable of handling diverse formations with low compressive strength, such as clay, mudstone, and soft limestone, providing reliable performance.
Horizontal Directional Drilling (HDD): The bit’s stability and ability to handle complex formations make it suitable for HDD applications.
Exploration Drilling: Effective in mineral exploration, where the formation types can vary and require a bit with reliable penetration and durability.
Construction & Infrastructure: Can be used in tunneling or road construction projects that require precise drilling in soft to medium formations.
Services
Customization: We offer customized sizes and IADC codes based on the specific requirements of each project.
Technical Support: Our experienced engineering team provides professional advice on bit selection, operation, and optimization.
Efficient Delivery: We maintain a large inventory of standard types, with custom orders delivered within 20-30 days.
After-Sales Service: Comprehensive support for troubleshooting, maintenance, and product optimization.
FAQs
What formations is the 17 1/2'' IADC 117 Steel Tooth Tricone Bit best suited for? This bit is ideal for drilling in soft to medium formations, including clay, mudstone, chalk, and soft shale. It is especially effective in environments with low compressive strength and high drillability.
Can the bit be used for geothermal well drilling? Yes, the bit is specifically designed for geothermal well drilling, handling high temperatures and tough formations.
What is the recommended rotation speed (RPM) for this bit? The recommended RPM is between 180-60, depending on the formation hardness and operational parameters.
How does the gauge protection enhance the bit's performance? The gauge protection reduces wear on the outer edge of the bit, which helps maintain stability and prolongs the life of the bit during prolonged use in abrasive formations.
Can I get a custom IADC code for my project? Yes, we offer customized sizes and IADC codes based on specific project requirements. Please contact our sales team for more details.
Provide professional technical service, production introduction,selectiong,drwaings and problem solutions.
Experienced engineers support to customized special size and IADC CODE bits according to customer requirements.
Large inventory of regular types , the customizes types can be delivered within 20 -30days.
