Bearing Structure
Precision Journal Bearing with Dual Thrust Surfaces
This journal bearing features two thrust faces for added stability and performance. The ball locked cone design ensures secure positioning. The head bearing surface is hardfaced for durability. Additionally, the cone bearing is embedded with a friction-reducing alloy and silver-plated for enhanced performance. These enhancements improve abrasion resistance and seizure resistance, making it ideal for high-speed rotation applications.
Cutting Structure

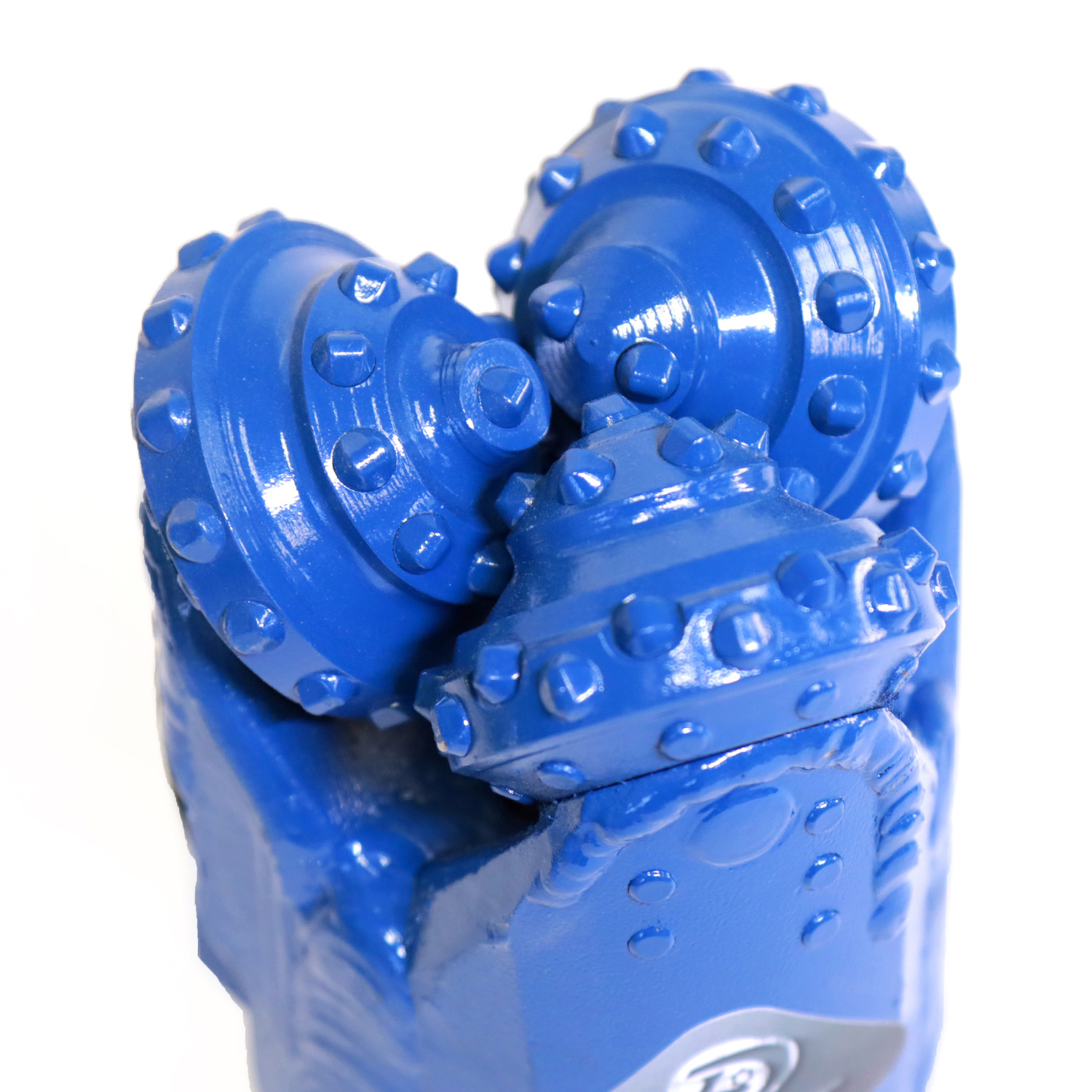

Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new formula and new techniques of insert bit.
Gauge Structure
Tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.
Drilling formation
Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.

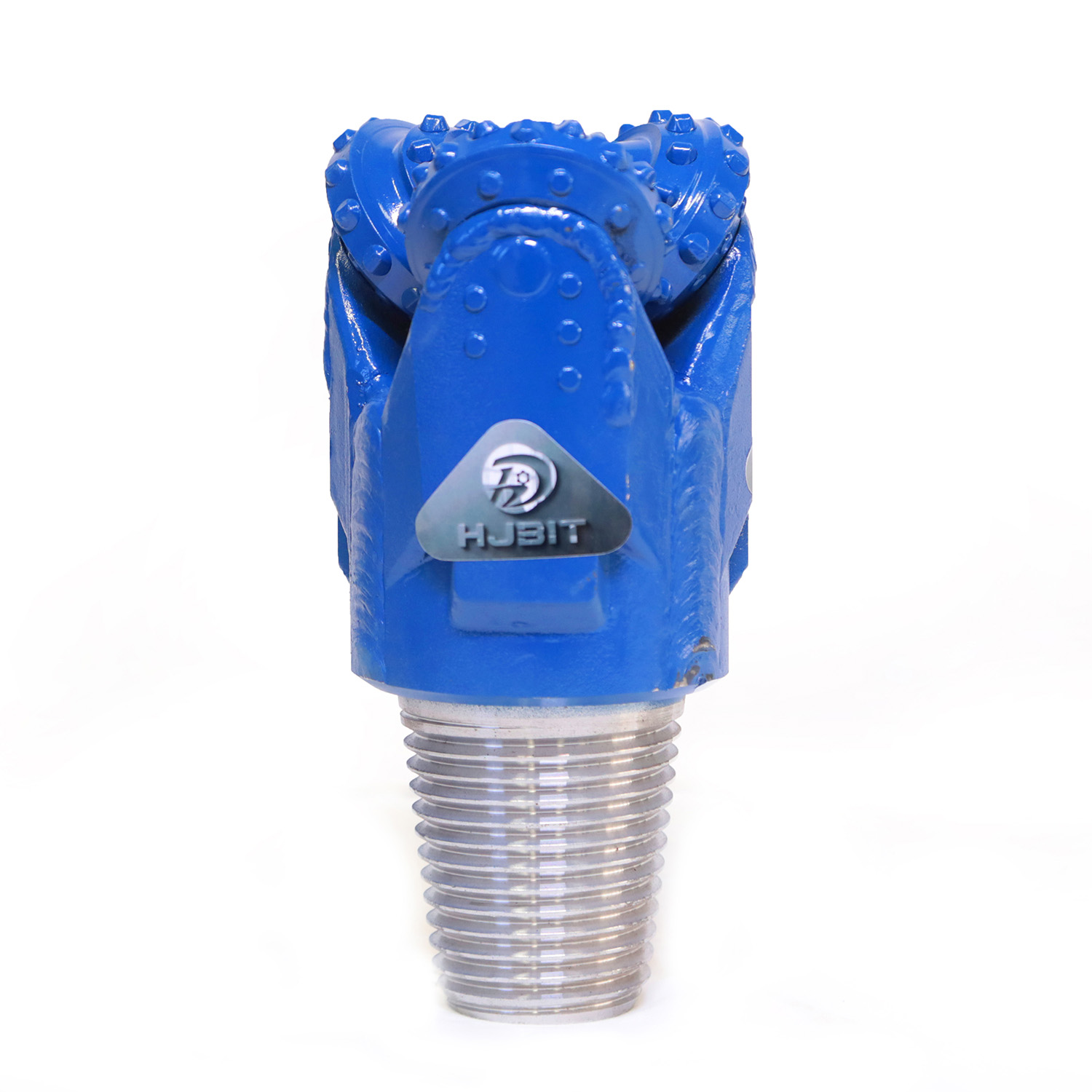

HENGJI BIT SPEC | IADC CODE 537 | |
Diameter | 3 7/8"(98mm) | |
Tooth Type | TCI | |
Bearing Type | Elastomer sealed bearing | |
Circulation Type | Mud fluid | |
Thread Connection | 2 3/8 API REG PIN | |
Nozzle | three jet nozzles | |
Gauge Protection | Available | |
Shirttail Protection | Available | |
Operating Parameters | ||
RPM(r/min) | 120~50 | |
WOB(KN) | 0.45~1.0 | |
Application | water well drilling,oil &gas well drilling ,HDD,exploration,geothermal well drilling,drilling projects,etc | |
Product Description

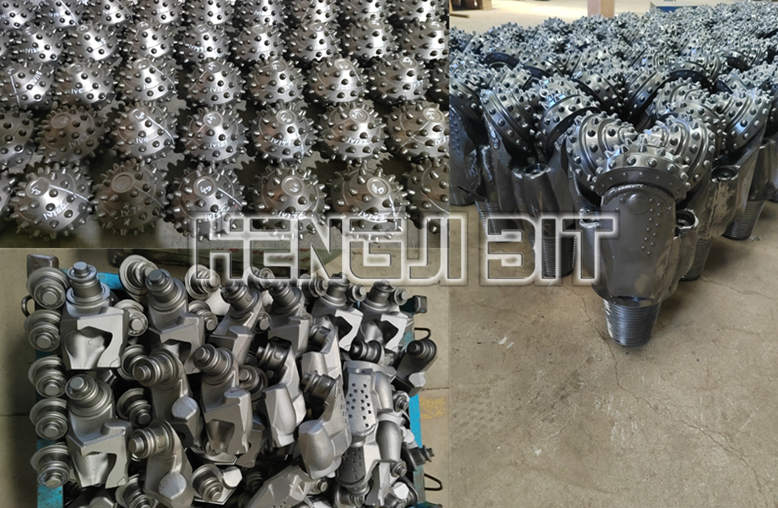

Our company offers a wide range of three-cone drill models in different sizes and types. These include TCI tricone bits, steel tooth tricone bits with metal sealed , rubber sealed and composite sealed. Customers can choose from various optional features such as diamond composite teeth, hard plastic cutting structures, convex top designs, and cone ball gears. We also provide custom processing services to meet specific requirements.
Applications
Our three-cone drills are suitable for a variety of industries including oil well drilling, gas well drilling, geothermal well drilling, mining, geological surveying, hydrographic surveying, water well drilling, HDD pipeline projects, and foundation projects.
