Introduction:
Design for higher ROP in drilling deeper and harder formations, PDC drill bit always drills from ground to bottom directly with less or even a single run, saving large amount of drill time and cost .
Differ from tricone bit, PDC drill bit runs with lower WOB but Higher RPM, so it usually works with downhole motor to pick up rotating speed.
The performance of PDC drill bit depends a lot on PDC cutters, we provide unique solution to specific requirement on varied formations.

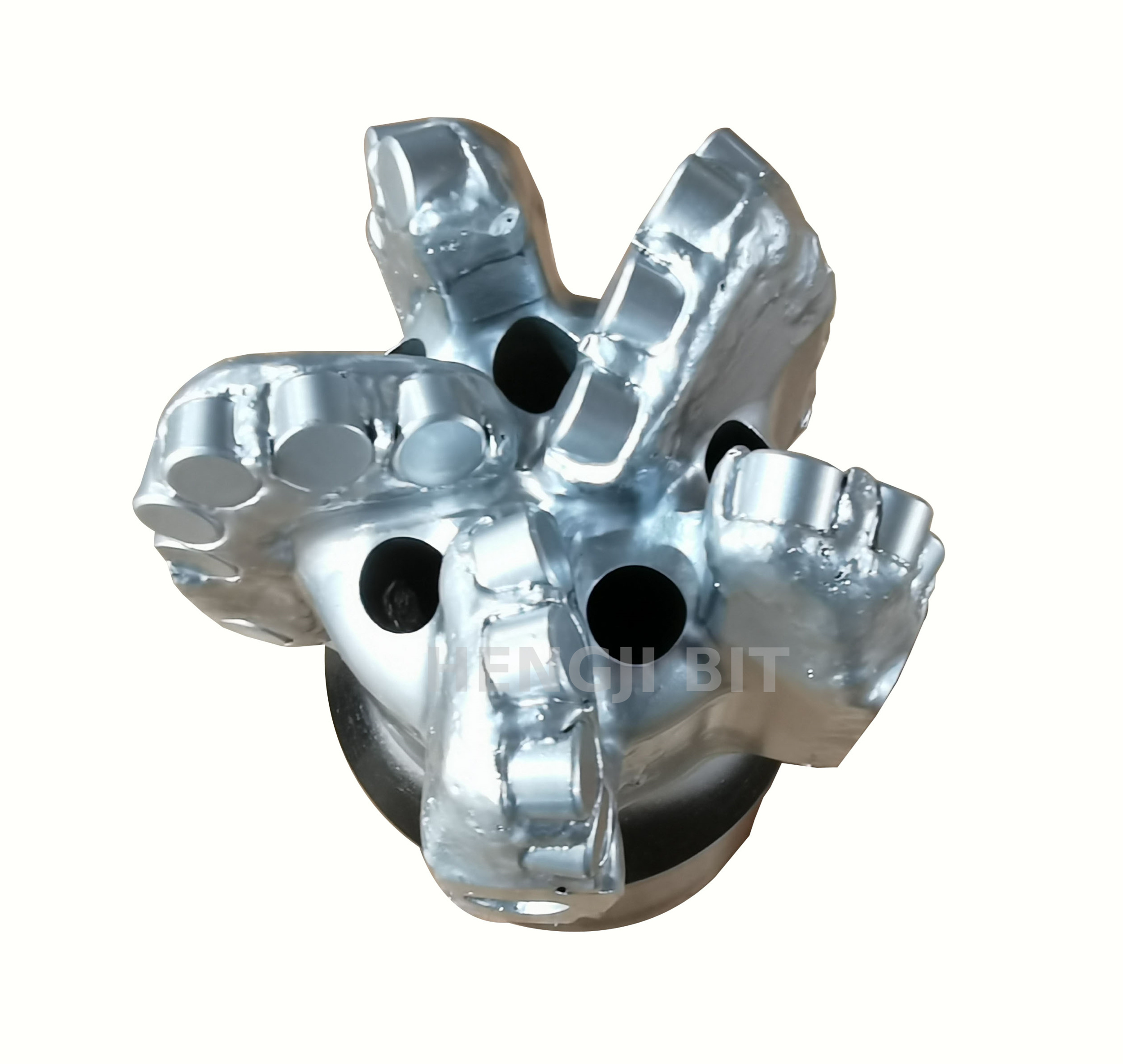

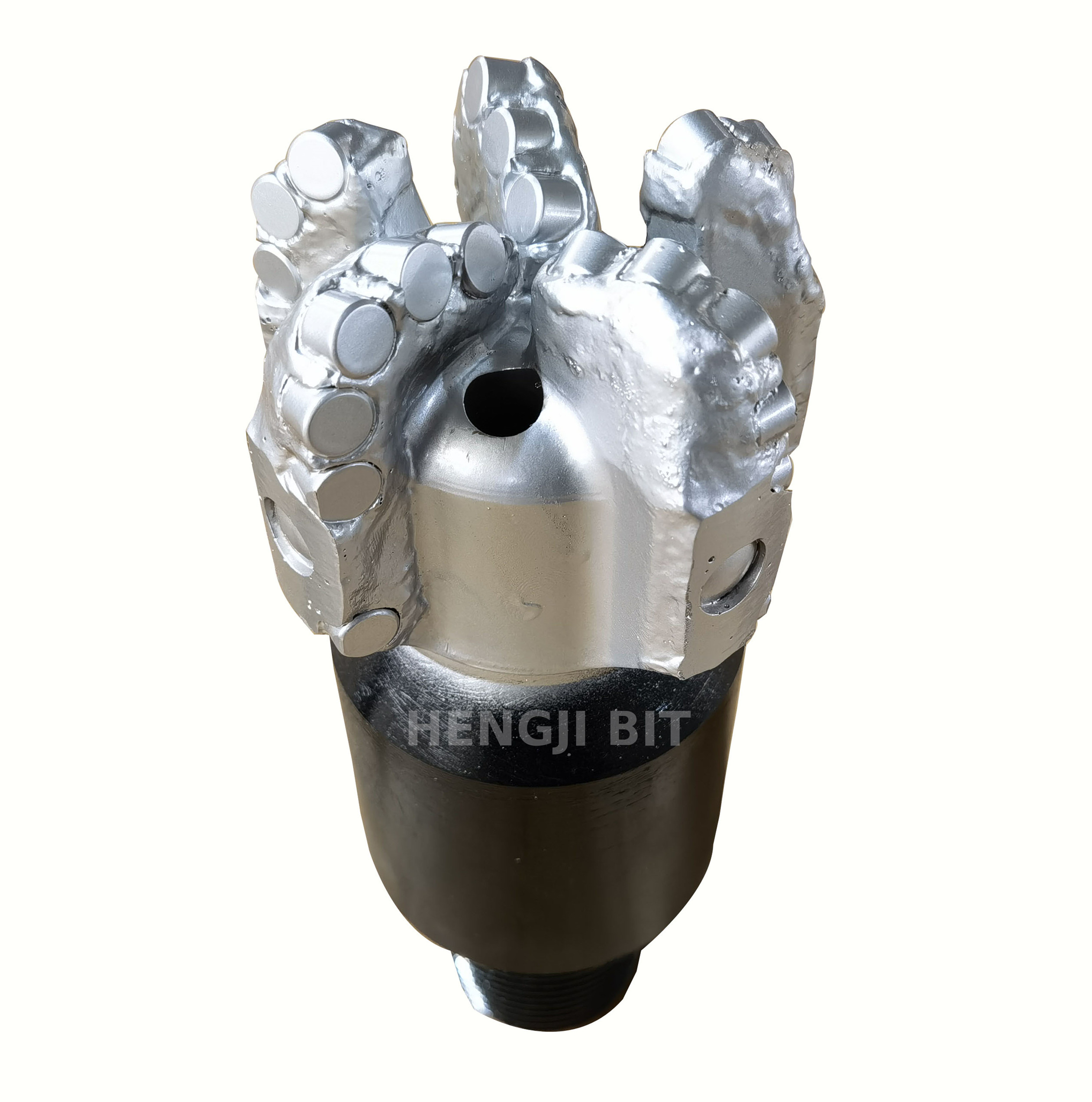

Steel Body PDC Drill Bit obtains better ROP in soft to medium hard formations and lower compressive strength.
Basical Specification | |
Size of bit | 3 7/8 |
Number of Blades | 5 |
Primary Cutter Size | 13mm |
Nozzle Qty. | 5NZ |
Thread Connection | 2 3/8 REG |
Operating Parameters | |
RPM (r/min) | 60~300 |
WOB(KN) | 20~110 |
Application | Medium-hard to hard formations with low compressive strength, such as hard shale, limestone, sand-stone, dolomite, hard gypsum, marble, etc. |
Introduction:
Design for higher ROP in drilling deeper and harder formations, PDC drill bit always drills from ground to bottom directly with less or even a single run, saving large amount of drill time and cost .
Differ from tricone bit, PDC drill bit runs with lower WOB but Higher RPM, so it usually works with downhole motor to pick up rotating speed.
The performance of PDC drill bit depends a lot on PDC cutters, we provide unique solution to specific requirement on varied formations.
Steel Body PDC Drill Bit obtains better ROP in soft to medium hard formations and lower compressive strength.
Basical Specification | |
Size of bit | 3 7/8 |
Number of Blades | 5 |
Primary Cutter Size | 13mm |
Nozzle Qty. | 5NZ |
Thread Connection | 2 3/8 REG |
Operating Parameters | |
RPM (r/min) | 60~300 |
WOB(KN) | 20~110 |
Application | Medium-hard to hard formations with low compressive strength, such as hard shale, limestone, sand-stone, dolomite, hard gypsum, marble, etc. |
