6 1/2‘’ Inch 120mm IADC 437 Tricone Bit with TCI Tooth for Extremely Soft Formations with Low Compressive Strength And High Drillability

Product Description

Tricone bits, with their high efficiency, stability, and adaptability, have become indispensable tools in modern drilling operations. Their comprehensive characteristics can be summarized in the following aspects:

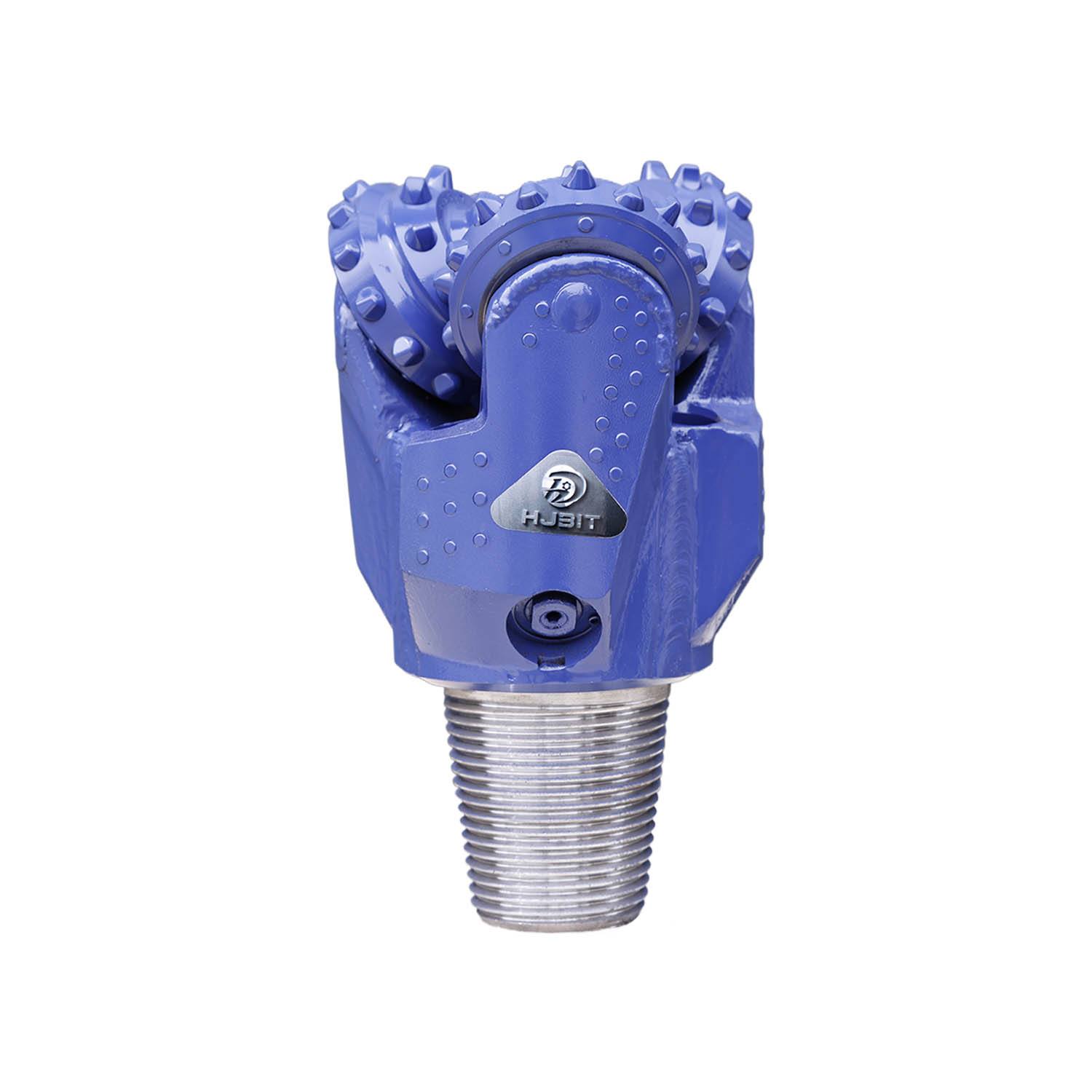

The 6 1/2'' 437 tricones with premium tungsten carbide inserts and advanced bearing technology, it provides exceptional durability. The

cutting structure is reinforced with tungsten carbide hardfacing, while gauge protection with trimmers and inserts enhances stability in abrasive conditions.

Built for high-speed performance, the bit features a precision bearing structure and friction-reducing alloys, ensuring long-lasting reliability. The metal seal package and pressure compensator maintain consistent lubrication, optimizing performance in tough environments.

Structural Features

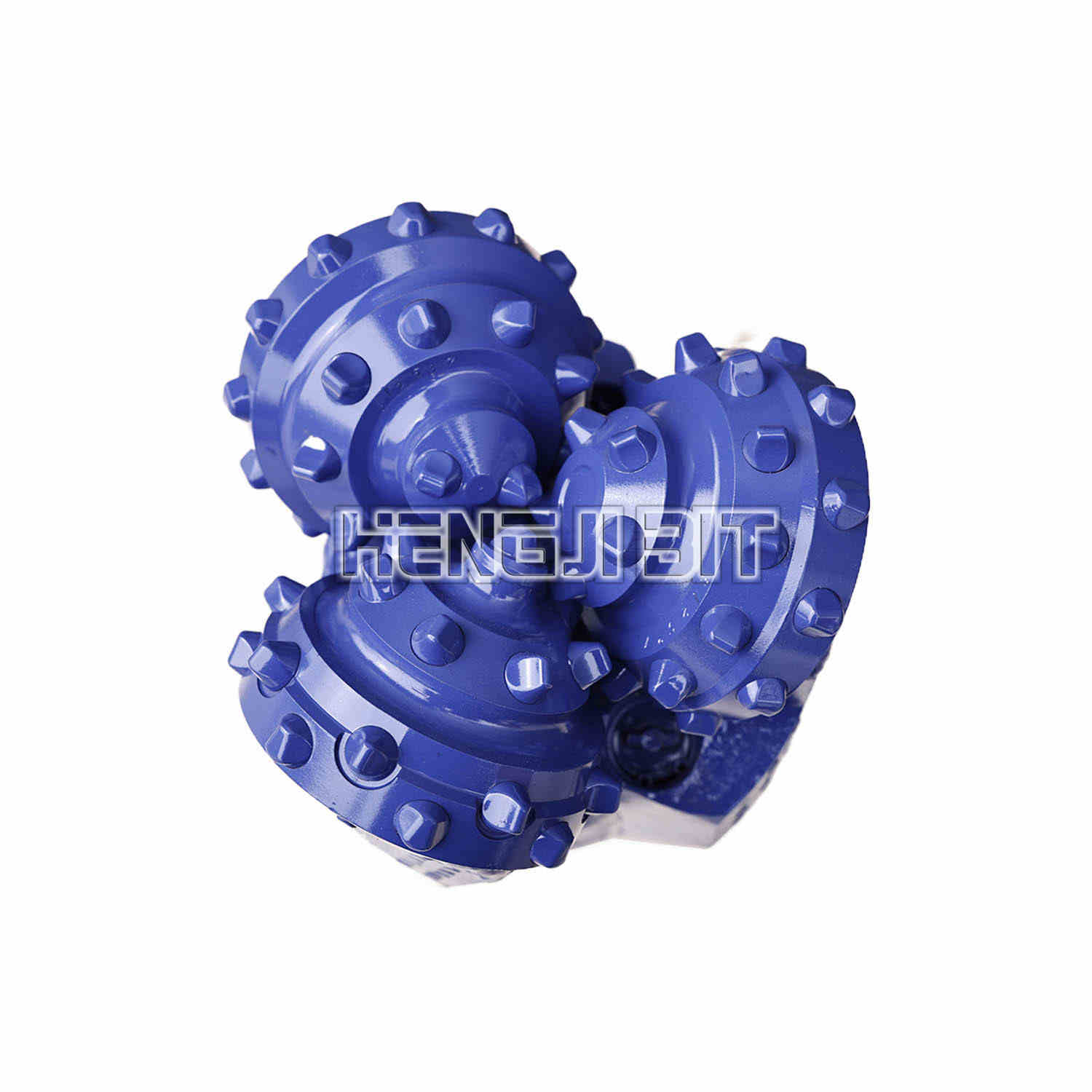

Tricone bits typically consist of cones, bearings, water passages, and nozzles. The core function is rock breakage through rotation and pressure. The cones are studded with cutting teeth that alternately contact the well bottom, effectively reducing wear and improving drilling efficiency. Tricone bits are classified by the number of cones: single, double, triple, and multiple, with tricone bits being the most common due to their good balance and high drilling efficiency.
The bearing system is a crucial component of the bit, typically using rolling or sliding bearings. The bearing inner race mates with the cone shaft, ensuring stability and wear resistance during high-speed rotation. The bit's locking system, including ball locking and thrust bearings, secures the cones and withstands axial loads.

Advantages
Tricone bits have the characteristics of small contact area, high specific pressure, low torque, and long cutting edge length, resulting in high efficiency and stability during drilling. For example, composite tricone bits combine the advantages of three-cone bits and disc bits, significantly improving mechanical drilling speed and extending service life.

Application

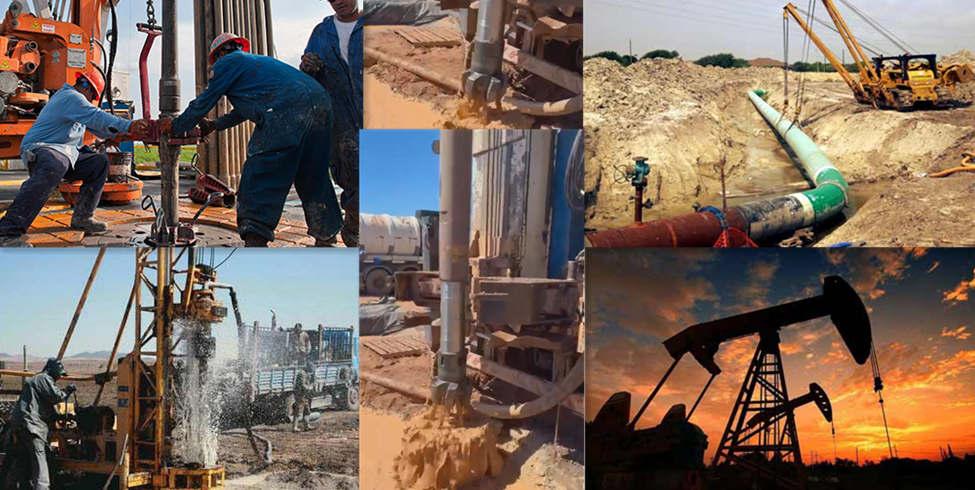

Tricone bits are suitable for various geological conditions, including oil exploration, water wells, geothermal wells, coalbed methane wells, and mining. Their design can be adjusted according to the characteristics of different formations to meet the needs of complex formations.
