17 1/2'' 444mm IADC 237 Small Teeth Steel Tooth Tricone Rotary Roller Cone Drill Bit

high quality
Availability:
Quantity:
Inquire Add to Basket

Steel tooth tricone bits introduction:

Our steel tooth tricones  teeth are forged ,it's superior method that provides a stronger, more impact-resistant tooth than milling because the metal particle structure during forging is protected, resulting in stronger teeth. IADC 237 with small teeth, widely drilled medium hard with hard streaks and low compressive strength,such as medium soft shale,limestone and sandstone as well as thick and hard streaks,etc. The  17 1/2 inches 237 tricone details of Steel tooth Bit as below:



HENGJI BIT  SPEC

IADC CODE 237

 17 12 237 (3)

Diameter

17 1/2"(444.5mm)

Tooth Type

Steel tooth

Bearing Type

Elastomer sealed bearing

Circulation Type

Mud fluid

Thread Connection

7 5/8 API REG PIN

Nozzle

three jet nozzles

Gauge Protection

Available

Shirttail Protection

Available

Operating Parameters

RPM(r/min)

100-60

WOB(KN)

0.4-1.0

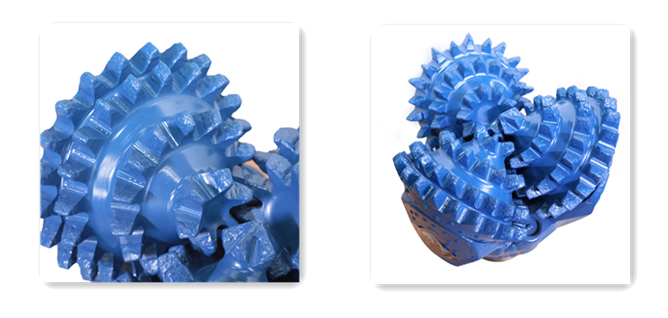

17 12 237 (2)_副本


Product Information:

Bearing Structure

High precision journalbearing,hardfacedbearing surface.

 Cone bearing inlaid with friction reducing alloy and then silver-plated,made the rotating more stability, safety and durability.

Cutting Structure

Steel tooth structure effectively improving the wearing resistance of the teeth and greatly increasing the rate of penetration.

The optimized tooth structure makes the wear-resistant alloy of the tooth surface and the tooth top weld thicker and more aggressive, effectively improving the wear resistance of the tooth and greatly increasing the mechanical drilling speed.

Gauge Structure

Enhanced gauge protection with hardfacing on the shirttail,

strengthened leg with more  tungsten carbide inserts.


                                                  HENGJI Popular models

    Bit size

                           IADC CODE

API Connection

4 1/2''(114.3mm)

115 117 127 217 417 437 517 515 537 535 615 637

2 3/8 API REG

4 3/4''(120.7mm)

115 117 127 217 417 437 517 515 537 535 637

2 7/8 API REG

5 1/2''(139.7mm)

115 117 127 217 417 437 517 515 537 535 637

3 1/2 API REG

5 7/8''(149mm)

115 117 127 217 417 437 517 515 537 535 637 635

3 1/2 API REG

6''(152mm)

115 117 127 217 417 437 517 515 537 535 637 635 737 837

3 1/2 API REG

6 1/2''(165mm)

115 117 127 217 417 437 517 515 537 535 617 627 637 737

3 1/2 API REG

6 3/4''(171mm)

115 117 127 217 417 437 517 515 537 535 617 627 637 737

3 1/2 API REG

7 1/2''’(190mm)

115 117 127 217 417 437 517 515 537 535 617 615 627 637 737

4 1/2 API REG

7 7/8''(200mm)

115 117 127 217 417 437 517 515 537 535 617 627 637 737 837

4 1/2 API REG

8 1/2''(215.9mm)

115 117 127 217 417 437 517 515 537 617 627 637 737 837

4 1/2 API REG

8 3/4''(222.3mm)

115 117 127 217 417 437 517 515 537 535 617 627 637 737 837

4 1/2 API REG

9 5/8''’(244.5mm)

115 117 127 217 417 437 517 537 617 627 637 635 737 837

6 5/8 API REG

9 7/8''’(250.8mm)

115 117 127 137 217 417 437 517 537 535 617 627 637 737 837

6 5/8 API REG

11 5/8''(295.3mm)

115 117 127 217 417 437 517 537 535 617 627 637 737 837

6 5/8 API REG

12 1/4''(311.1mm)

115 117 127 217 417 437 517 537 535 617 627 637 737 837

6 5/8 API REG

14 3/4''(374.7mm)

115 117 127 217 417 437 517 537 535 617 627 637 737 837

7 5/8 API REG

15 1/2''(393.7mm)

115 117 127 217 417 437 517 537 535 617 627 637 737 837

7 5/8 API REG

17 1/2''(444.5mm)

115 117 127 217 237 417 437 517 515 537 535 617  637 635

7 5/8 API REG

20''(508mm)

115 117 127 217 237 437 517 515 537 535 637 635

7 5/8 API REG

22''(558.8mm)

115 117 127 217 437 517 515 537 535 637 635 737 837

7 5/8 API REG

24''(509.6mm)

115 117 127 217 437 517 515 537 535  637 635 737 837

7 5/8 API REG
