Product Description

Steel tooth tricone bit, also named milled tooth tricone bit, is a mainstream rotary rock drilling tool with three rotating cones. Its cutting structures are teeth milled directly from cone steel bodies, different from tungsten carbide insert tricone bits (TCI bits). It relies on tooth gouging, scraping and crushing effect to break rock during drilling.

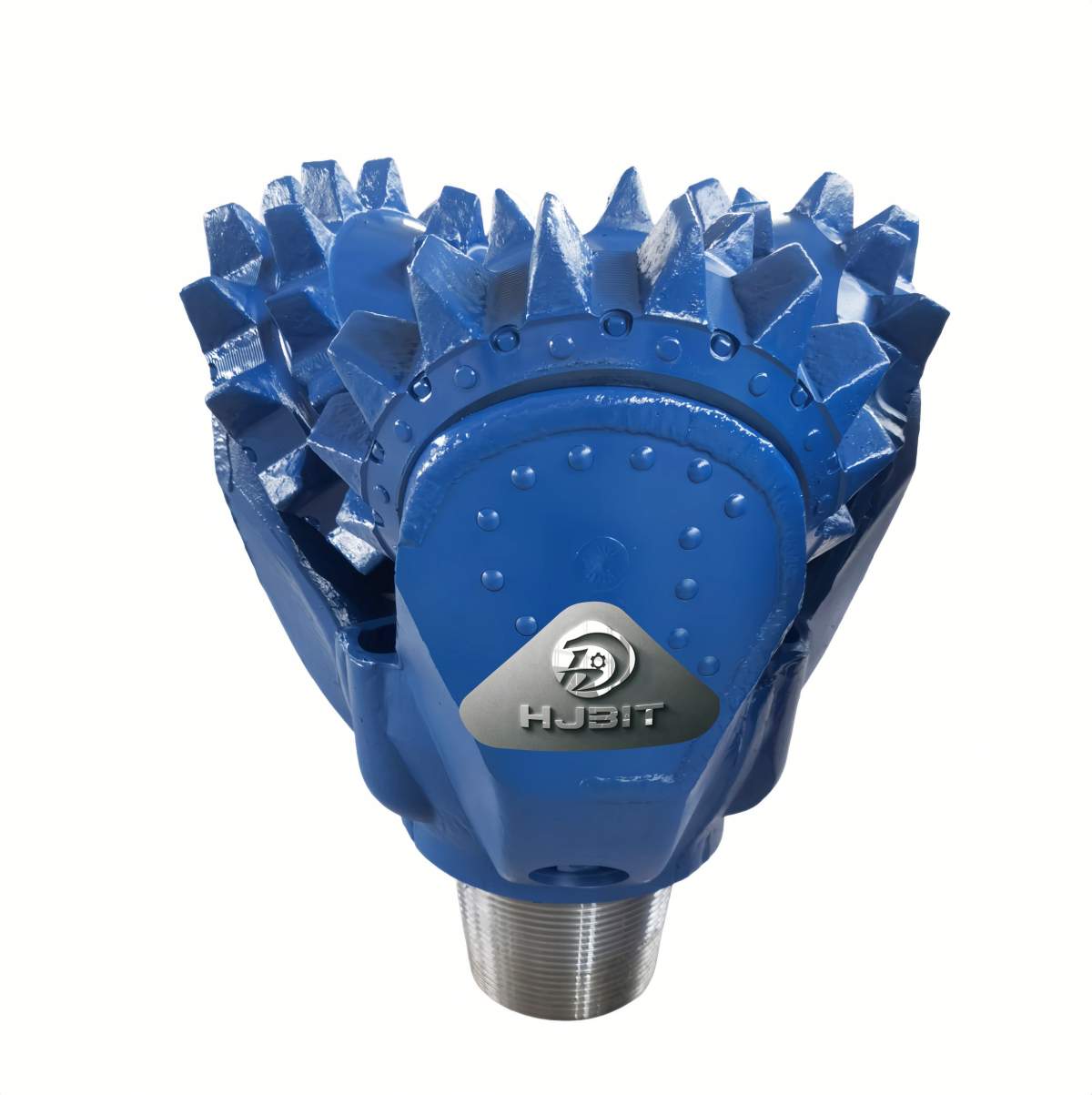

Tricone 18 1/2'' 115 with high precision journalbearing,hardfacedbearing surface. Cone bearing inlaid with friction reducing alloy ,made the rotating more stability, safety and durability.Steel tooth structure effectively improving the wearing resistance of the teeth and greatly increasing the rate of penetration.

Product Parameter

Features

The superior method provides a stronger, more impact-resistant tooth than milling because the metal particle structure during forging is protected, resulting in stronger teeth. The details of Steel tooth Bit.

The heat treatment process selectively carburizes the bearing wear surface to ensure the toughness of the structure. This provides long-lasting and reliable bearing performance.

Critical tooth hard-facing process is continually monitored and updated to ensure the highest quality hard facing deposit.

Applications

(1) Oil & Gas Drilling (Largest Application)

• Shallow surface sections of onshore & offshore exploratory wells, development wells, production wells; drill through overburden soil and upper soft sedimentary layers before reservoir sections.

• Hole reaming, sidetracking, shallow horizontal well top-hole drilling.

• Low-cost alternative for shallow oil/gas projects with soft stratigraphy, superior penetration rate vs TCI bits in sticky clay/shale.

(2) Water Well & Geothermal Drilling

• Civil drinking water wells, agricultural irrigation wells, shallow geothermal boreholes.

• Perfect for alluvial, clay, soft limestone shallow aquifers; low cost for mass shallow well construction.

(3) Coal & Mining Drilling

• Underground coal mine: gas drainage holes, water exploration holes, roof anchor boreholes in coal seams & soft mudstone surrounding rock.

• Open-pit mine: shallow blast holes in soft coal, weathered sedimentary rock; cost-effective for high-volume soft rock drilling.

(4) Civil Engineering & Infrastructure

• Foundation pile drilling, roadbed exploration boreholes, municipal pipeline pilot holes.

• Tunnel preliminary prospecting, soft soil strata geotechnical investigation drilling.

(5) Other Special Drilling

• Shallow geotechnical survey, geological exploration boreholes; air rotary drilling for surface soil sampling.

• Reverse circulation shallow drilling projects with low abrasion rock.

  Differences Between Steel Tooth Tricone Bit & TCI Tricone Bit

  1. Cutting Tooth Structure (Core Difference)

  Steel Tooth Bit (Milled Tooth Bit)

•    Teeth are directly milled out from the cone steel body as one piece

• Surface welded with wear-resistant hardfacing alloy only

• Tooth shape is limited by cone forging processing

• TCI Tricone Bit

• Holes pre-drilled on cones, hard tungsten carbide inserts pressed in separately

• Carbide inserts have ultra-high hardness, various shapes (spherical, conical, wedge)

• Replaceable tooth performance design for different rock hardness

  2. Wear Resistance & Service Life

• Steel tooth: Low wear resistance; teeth wear down rapidly in sandstone, quartz, abrasive layers, short footage per run

• TCI insert: Tungsten carbide far harder than steel; resistant to abrasive rock, much longer service life, fewer trips to change bits

  3. Drilling Speed (ROP)

• Steel tooth: Better gouging & scraping effect; faster penetration in soft sticky formations (clay, mudstone, salt, loose soil)

• TCI insert: Hard inserts crush hard rock well, but cut slowly in pure soft plastic strata, easy bit balling in thick clay

  4. Applicable Formations

• Steel Tooth Bit (IADC 1XX, 2XX series)

• Soft to medium, low-abrasion rock: clay, shale, mudstone, chalk, salt rock, coal, soft marl, topsoil overburden

  Not fit: siliceous sandstone, granite, chert, hard dense dolomite

• TCI Tricone Bit (IADC 3XX, 4XX, 5XX, 6XX, 7XX, 8XX series)

• Medium-hard, hard, highly abrasive formations: medium/hard sandstone, limestone, basalt, igneous rock, interbedded hard strata, deep reservoir sections

  5. Cost

• Steel tooth: Simple processing, lower production cost, cost-effective for shallow short footage drilling

• TCI insert: Complex machining + expensive tungsten carbide raw materials, higher purchase cost

  6. Common Failure Modes

• Steel tooth: Tooth abrasion, tooth thinning, reduced penetration speed; integral tooth cannot fall off easily

• TCI insert: Insert breakout, tooth loss under severe impact; insert wear slower when intact

  7. Typical Application Scenarios

• Steel Tooth Bit

• Oil & gas top-hole surface drilling, shallow water wells, coal mine gas drainage holes, geotechnical exploration, open-pit shallow blast holes

• TCI Tricone Bit

• Deep oil/gas reservoir drilling, geothermal deep wells, hard rock water wells, mining deep blast holes, engineering drilling with hard rock interlayers
